COGIS - WELL SCOUT CARD

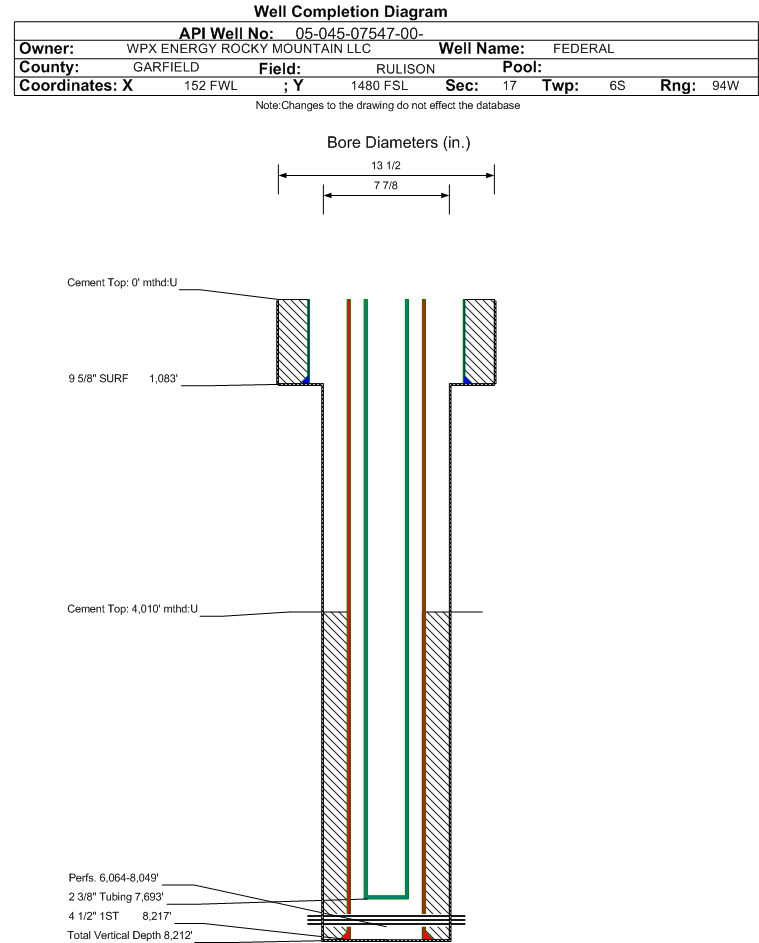

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07547		Well Classification: GW Status: PR - 8/1/2018
Well Name/No:FEDERAL #RMV 123-17
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC62160
Facility Status:PRStatus Date8/1/2018
FacilityID:257366LocationID:335140
County:GARFIELD #045Location:NWSW 17 6S94W 6
Field:RULISON - #75400Elevation:5859 ft.
Basin:PICEANCE BASIN
Planned Location:1480FSL  152 FWLLat/Long: 39.521679 / -107.920791Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.521738 / -107.920777Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/1/2018             Measured TD: 8225 ft.    Vertical TD: 8212 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/1/2018
Wellbore Permit
Permit #:000528 Expiration Date:5/29/2001
Proposed Depth/Form:8100 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-16 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:10/26/2000
Spud Date:8/3/2000Spud Date Is:ACTUAL
Measured TD:8225 ft.Measured PB depth:
True Vertical TD:8212 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1471 FSL  491 FWL
Bottom Hole Location:Sec: Twp: Footage: 1471 FSL  491 FWL
Log Types:DISD-NEUTRON/CBL-GR-CCL/ MUD
Log Types:DUAL IND SPEC DENS DUAL SPACED NEUTRON
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1083 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: , Bottom: 1083 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8217 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 915, Top: 4010 ft., Bottom: 8217 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2466 ft.NN
MESAVERDE4841 ft.NN
CAMEO COAL7488 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/1/2018                  Interval Top: 6064 ft.    Interval Bottom: 8049 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/26/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7693 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/25/2000Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 20
CALC_MCF_GAS 1442
CASING_PRESS 2355
TUBING_PRESS 2171
Perforation Data:
Interval Top:6064 ft.# Of Holes:74
Interval Bottom:8049 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)17
Total Gas Produced (MCF)5526
GOR325058
GOR DeterminationMCFE
Average BOE per Day2.656
Average MCFE per Day15.426

 Federal Financial Assurance  i Y

 Tribal Well  i No
