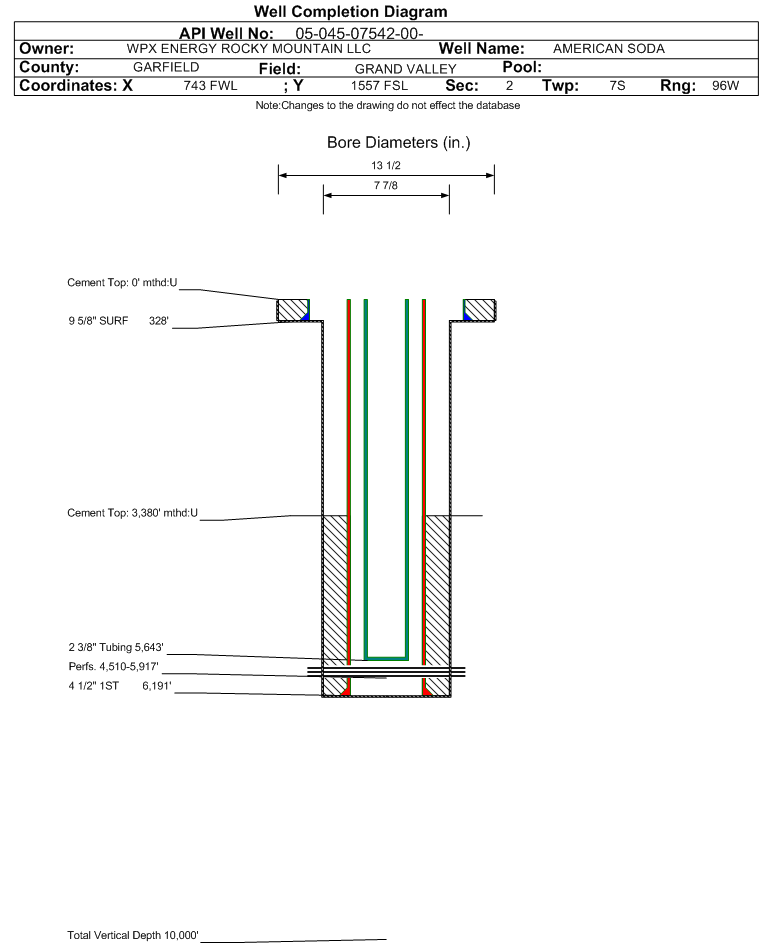

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07542		Well Classification: GW Status: PR - 8/4/2000
Well Name/No:AMERICAN SODA #GM 262-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/4/2000
FacilityID:257355LocationID:324104
County:GARFIELD #045Location:NWSW 2 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5465 ft.
Basin:PICEANCE BASIN
Planned Location:1557FSL  743 FWLLat/Long: 39.463179 / -108.083875Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.463476 / -108.083227Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/4/2000             Measured TD: 6197 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/4/2000
Wellbore Permit
Permit #:000520 Expiration Date:5/25/2001
Proposed Depth/Form:6340 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-3 , Unit Acreage: 40, Drill Unit: NWSW
Wellbore Completed
Completion Date:N/A
Spud Date:6/16/2000Spud Date Is:ACTUAL
Measured TD:6197 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 328 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: 328 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6191 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 870, Top: 3380 ft., Bottom: 6191 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1500 ft.NN
FORT UNION1749 ft.NN
MESAVERDE3141 ft.NN
CAMEO COAL5627 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/4/2000                  Interval Top: 4510 ft.    Interval Bottom: 5917 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/10/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5643 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/10/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
CALC_BBLS_H2O 5
CALC_MCF_GAS 958
CASING_PRESS 1205
MCF_GAS 958
TUBING_PRESS 1114
Perforation Data:
Interval Top:4510 ft.# Of Holes:66
Interval Bottom:5917 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)6834
GOR621272
GOR DeterminationMCFE
Average BOE per Day3.261
Average MCFE per Day18.906

 Federal Financial Assurance  i

 Tribal Well  i No
