COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07537		Well Classification: GW Status: PA - 9/26/2022
Well Name/No:ROE #13-12
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CAERUS PICEANCE LLC - 10456
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/26/2022
FacilityID:257221LocationID:334593
County:GARFIELD #045Location:SESW 13 7S93W 6
Field:MAMM CREEK - #52500Elevation:6339 ft.
Basin:PICEANCE BASIN
Planned Location:714FSL  2229 FWLLat/Long: 39.440531 / -107.725014Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.440400 / -107.724850Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 9/26/2022             Measured TD: 7488 ft.    Vertical TD: 6973 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 9/26/2022
Wellbore Permit
Permit #:000435 Expiration Date:5/9/2001
Proposed Top PZ Location:Sec: Twp: Footage: 1876 FSL  789 FWL
Bottom Hole Location:Sec: Twp: Footage: 1980 FSL  709 FWL
Proposed Depth/Form:7900 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTERS MESA Unit Number:55972
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: 52678, Drill Unit: U
Wellbore Completed
Completion Date:12/3/2000
Spud Date:8/23/2000Spud Date Is:ACTUAL
Measured TD:7488 ft.Measured PB depth:7445 ft.
True Vertical TD:6973 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1876 FSL  789 FWL
Bottom Hole Location:Sec: Twp: Footage: 1980 FSL  709 FWL
Log Types:CBL,TDTL/GR-CCL

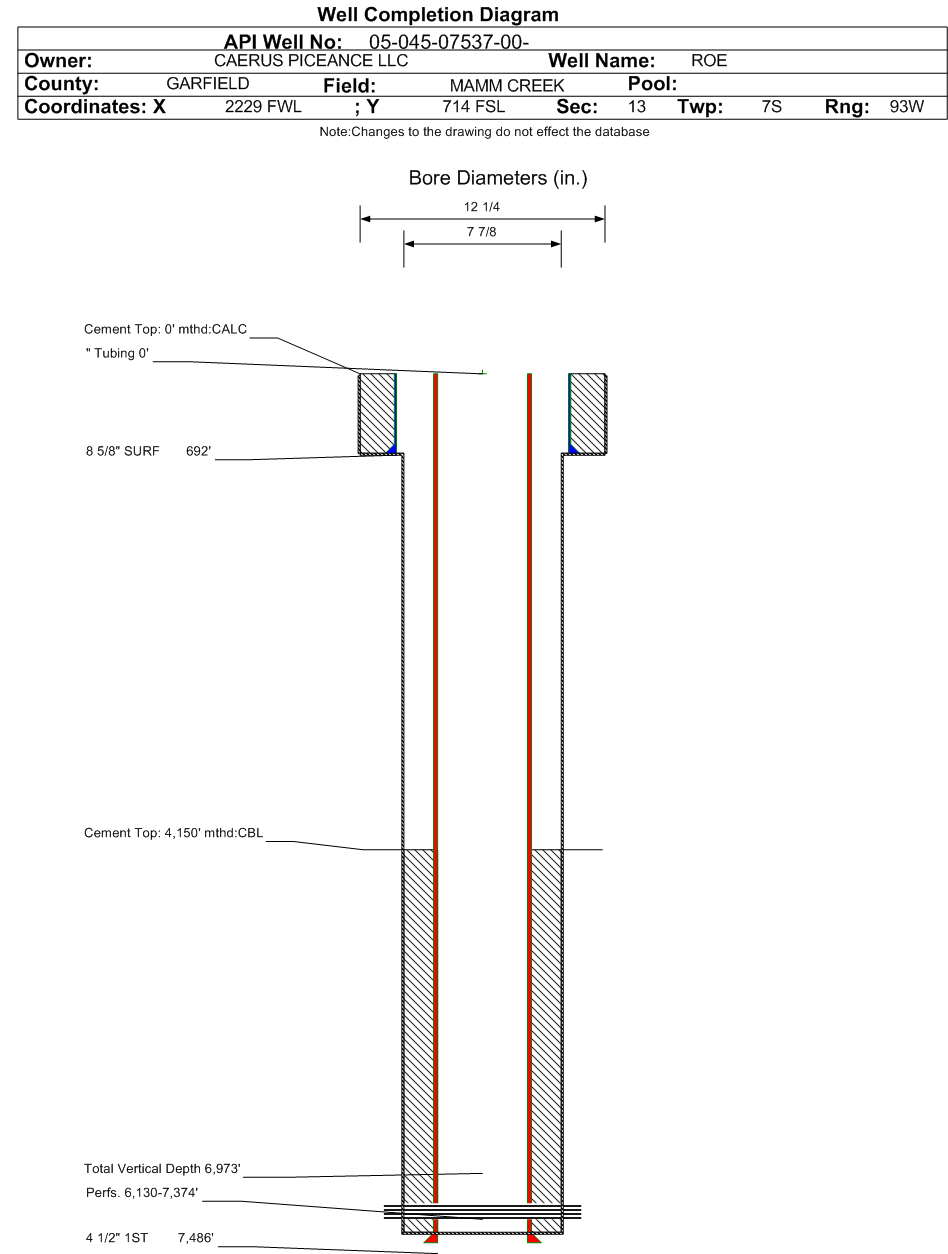

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 692 ft., Weight: 24# , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 692 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7486 ft., Weight: 11.6# , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 4150 ft., Bottom: 7486 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH3501 ft.4407 ft.NN
OHIO CREEK4407 ft.5138 ft.NN
WILLIAMS FORK5138 ft.5696 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  AB - 9/26/2022                 Interval Top: 6130 ft.    Interval Bottom: 7374 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:12/3/2000
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 0
CALC_BBLS_H2O 8
CALC_BBLS_OIL 0
CALC_MCF_GAS 584
CASING_PRESS 510
MCF_GAS 584
TUBING_PRESS 360
Perforation Data:
Interval Top:6130 ft.# Of Holes:81
Interval Bottom:7374 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/26/2022
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2029
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i Y

 Tribal Well  i No
