Wellbore #00 Wellbore Classification: GW Status: PR - 6/1/2002 Measured TD: 7322 ft. Vertical TD: 7048 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/1/2002 | | Wellbore Permit | | | Permit #: | 000434 | Expiration Date: | 5/9/2001 | | Proposed Top PZ Location: | Sec:13 Twp: 7S 93W | Footage: 664 FSL 819 FWL | | Bottom Hole Location: | Sec:13 Twp: 7S 93W | Footage: 660 FSL 660 FWL | | Proposed Depth/Form: | 7050 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | 55972 | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: 52678, Drill Unit: U | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7322 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 893, Top: 3400 ft., Bottom: 7322 ft. |
| | |

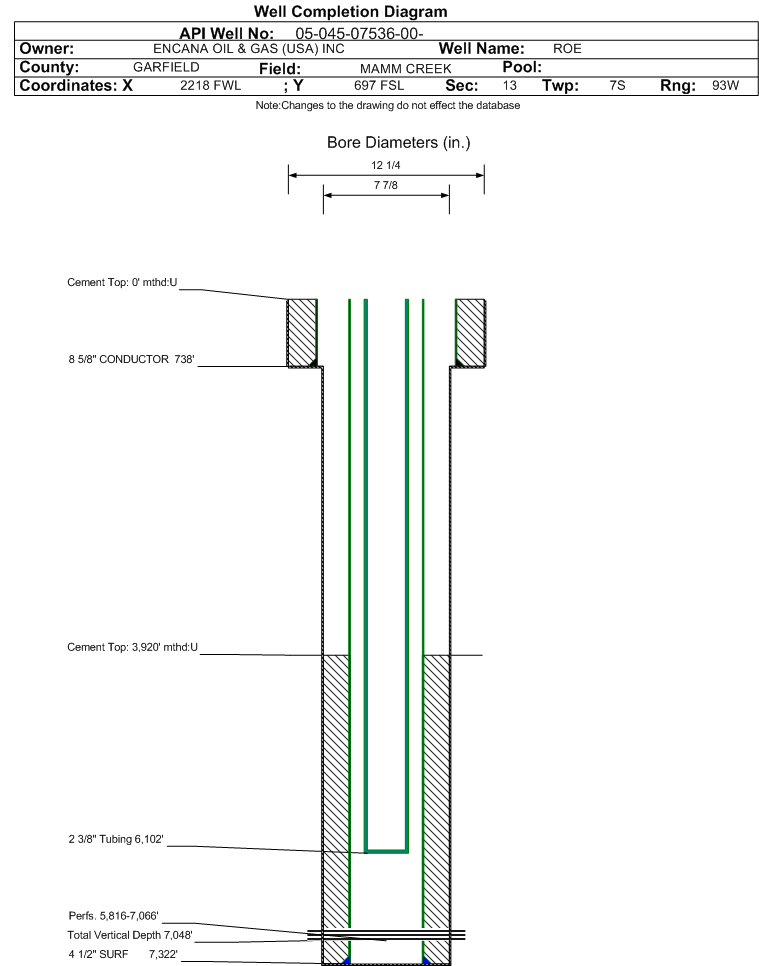

| Wellbore Completed | | Completion Date: | 11/20/2000 | | Spud Date: | 8/10/2000 | Spud Date Is: | ACTUAL | | Measured TD: | 7322 ft. | Measured PB depth: | 7227 ft. | | True Vertical TD: | 7048 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 664 FSL 819 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 667 FSL 717 FWL | | Log Types: | CBL,TDTL/GR-CCL,AI/GR,CN/LD/GR | | Casing: | String Type: CONDUCTOR, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 738 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 370, Top: 0 ft., Bottom: 738 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7322 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 900, Top: 3920 ft., Bottom: 7322 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 3569 ft. | 4281 ft. | N | N | | OHIO CREEK | 4281 ft. | 4932 ft. | N | N | | WILLIAMS FORK | 4932 ft. | 5465 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 6/1/2002 Interval Top: 5816 ft. Interval Bottom: 7066 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/20/2000 | | Treatment Summary: | STAGE1:PERFS 6604-7066' ACID BREAKDOWN 1500 GALS 15% HCL ACID W/75 RCN BALL SEALERS.FRAC W/1926 BBLS VISTAR 16&213,010#S20/40 WHITE SAND.STAGE 2:PERFS 6094'-6442'ACID BREAKDOWN W/1500GALS15%ACID W/100 RCN BALL SEALERS.FRACW/1500 GALS15%HCL ACID(CONT) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6102 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/26/2000 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 15 | | BBLS_OIL | 8 | | CALC_BBLS_H2O | 15 | | CALC_BBLS_OIL | 8 | | CALC_GOR | 84500 | | CALC_MCF_GAS | 676 | | CASING_PRESS | 340 | | MCF_GAS | 676 |
| | Perforation Data: | | Interval Top: | 5816 ft. | # Of Holes: | 78 | | Interval Bottom: | 7066 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 36 |
| Total Gas Produced (MCF) | 12989 |
| GOR | 360805 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.235 |
| Average MCFE per Day | 36.155 |
| Federal Financial Assurance | i | Y |
|
|
