COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07534		Well Classification: GW Status: PR - 2/8/2001
Well Name/No:ROLES #13-14
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/8/2001
FacilityID:257218LocationID:334593
County:GARFIELD #045Location:SESW 13 7S93W 6
Field:MAMM CREEK - #52500Elevation:6341 ft.
Basin:PICEANCE BASIN
Planned Location:681FSL  2207 FWLLat/Long: 39.440441 / -107.725094Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.440300 / -107.724930Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

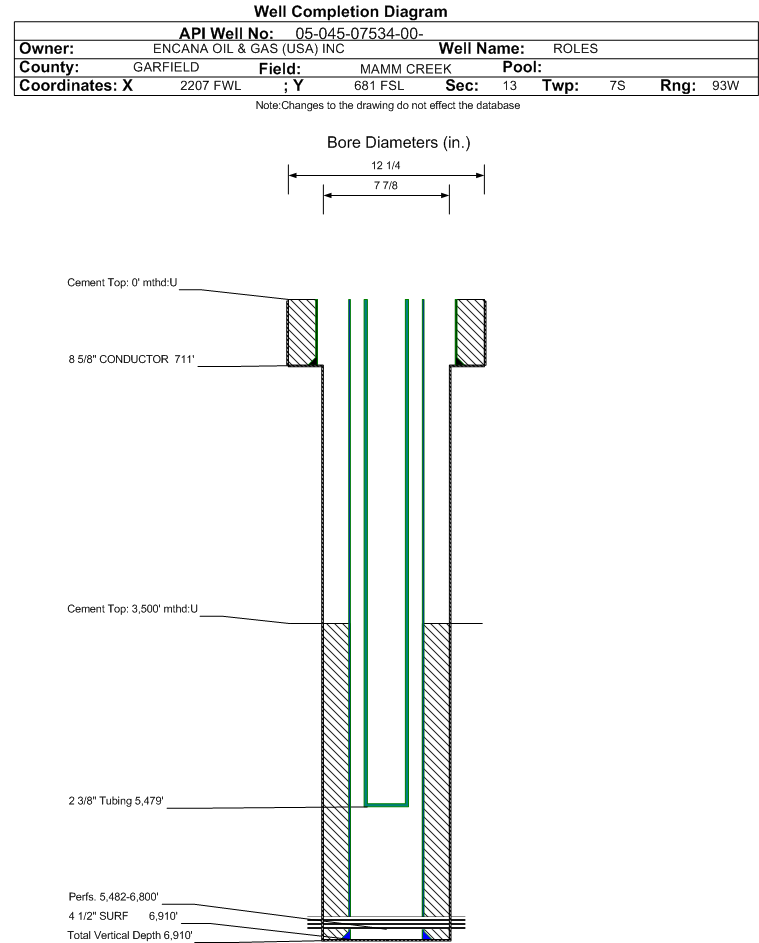

Wellbore #00             Wellbore Classification: GW             Status: PR - 2/8/2001             Measured TD:     Vertical TD: 6910 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/8/2001
Wellbore Permit
Permit #:000432 Expiration Date:5/9/2001
Proposed Depth/Form:6950 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:55972E
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: 52678, Drill Unit: U
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6950 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 809, Top: 3400 ft., Bottom: 6950 ft.
Wellbore Completed
Completion Date:11/17/2000
Spud Date:7/29/2000Spud Date Is:ACTUAL
Measured TD:Measured PB depth:
True Vertical TD:6910 ft.True Vertical PB depth:6648 ft.
Log Types:CBL,TDT/GR-CCL
Casing:String Type: CONDUCTOR, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 711 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 711 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6910 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 980, Top: 3500 ft., Bottom: 6910 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH3280 ft.3997 ft.NN
OHIO CREEK3997 ft.4682 ft.NN
WILLIAMS FORK4652 ft.5210 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 2/8/2001                  Interval Top: 5482 ft.    Interval Bottom: 6800 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:10/18/2000Choke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/17/2000
Treatment Summary:STAGE1:PERFS 6438-6800'ACID BREAKDOWN 1500 GALS 15% HCL ACID W/75 BALL SEALERS,FRAC W/1435 BLS WISTAR 16 W/168,010# 20/40 WHITE SAND,STAGE2:ACID BREAKDOWN 1500 GALS HCL ACID W/100 BALL SEALERS FRAC W/1265 BBLS VISTAR 16 W/108,972#S20/40 WHITE SND.(CONT)
Tubing Size:2.375 in.Tubing Setting Depth:5479 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/19/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 15
BBLS_OIL 7
CALC_BBLS_H2O 15
CALC_BBLS_OIL 7
CALC_GOR 166710
CALC_MCF_GAS 1167
MCF_GAS 1167
TUBING_PRESS 340
Perforation Data:
Interval Top:5482 ft.# Of Holes:81
Interval Bottom:6800 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)41
Total Gas Produced (MCF)14015
GOR341829
GOR DeterminationMCFE
Average BOE per Day6.731
Average MCFE per Day39.052

 Federal Financial Assurance  i Y

 Tribal Well  i No
