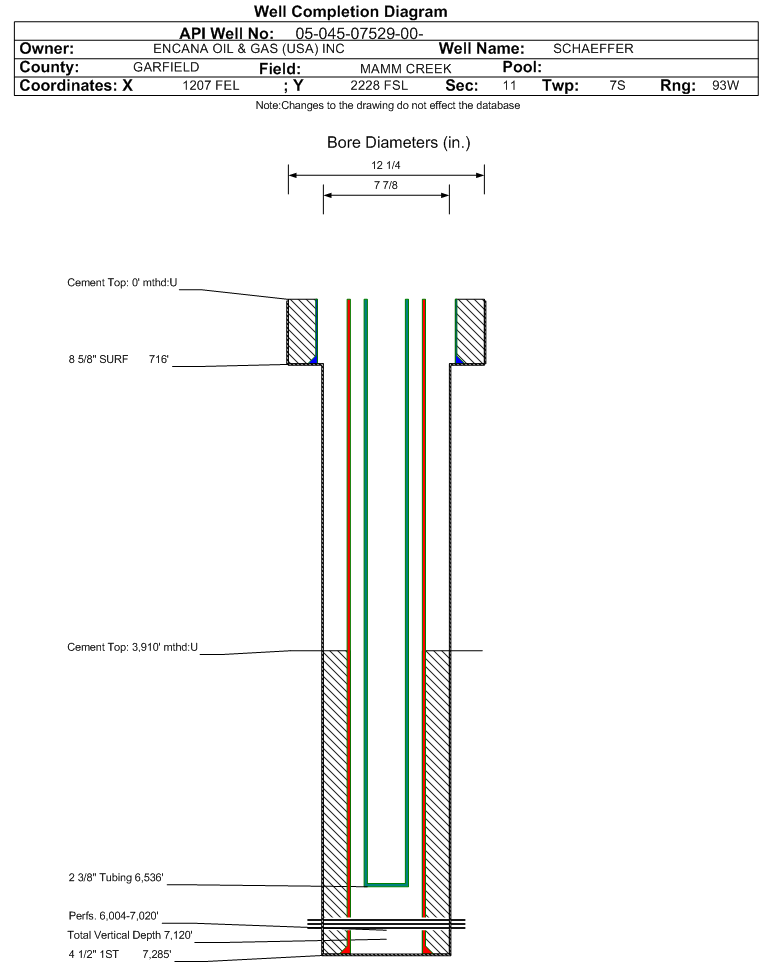

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07529		Well Classification: GW Status: PR - 1/1/2019
Well Name/No:SCHAEFFER #11-8 (I11W)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/1/2019
FacilityID:257180LocationID:334561
County:GARFIELD #045Location:NESE 11 7S93W 6
Field:MAMM CREEK - #52500Elevation:6330 ft.
Basin:PICEANCE BASIN
Planned Location:2228FSL  1207 FELLat/Long: 39.458921 / -107.737385Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.459040 / -107.737260Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/1/2019             Measured TD: 7285 ft.    Vertical TD: 7120 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/1/2019
Wellbore Permit
Permit #:000416 Expiration Date:5/4/2001
Proposed Top PZ Location:Sec:11 Twp: 7S 93W Footage: 735 FEL  3166 FSL
Bottom Hole Location:Sec:11 Twp: 7S 93W Footage: 660 FEL  1980 FNL
Proposed Depth/Form:7150 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:55792
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: 52678, Drill Unit: U
Wellbore Completed
Completion Date:9/27/2000
Spud Date:7/30/2000Spud Date Is:ACTUAL
Measured TD:7285 ft.Measured PB depth:7180 ft.
True Vertical TD:7120 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 3166 FSL  735 FEL
Bottom Hole Location:Sec: Twp: Footage: 2008 FNL  651 FEL
Log Types:CBL,TDTL/GR-CCL.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 716 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 716 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7285 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 3910 ft., Bottom: 7285 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH3508 ft.4230 ft.NN
OHIO CREEK4230 ft.5012 ft.NN
WILLIAMS FORK5012 ft.5545 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 1/1/2019                  Interval Top: 6004 ft.    Interval Bottom: 7020 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:9/27/2000
Treatment Summary:SL:6546-7020 ACID BREAKDOWN W/1500GAL 15% HCI ACID & 100RCN BALLSEALERS. FRAC W/998 BBL VISTAR 16 96130# 20/40 WHITE SD. S2:6004-6431 ACID BREAKDOWN W/1500 GAL 15%HCI ACID W/75RCN BALLSEALERS. 1446 BBL VISTAR 16 W/166280# 20/40 WHITE SD.
Tubing Size:2.375 in.Tubing Setting Depth:6536 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/2/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 3
CALC_BBLS_H2O 5
CALC_BBLS_OIL 3
CALC_GOR 83000
CALC_MCF_GAS 249
CASING_PRESS 460
MCF_GAS 249
TUBING_PRESS 310
Perforation Data:
Interval Top:6004 ft.# Of Holes:56
Interval Bottom:7020 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)4
Total Gas Produced (MCF)4000
GOR1000000
GOR DeterminationMCFE
Average BOE per Day1.898
Average MCFE per Day11.019

 Federal Financial Assurance  i Y

 Tribal Well  i No
