COGIS - WELL SCOUT CARD

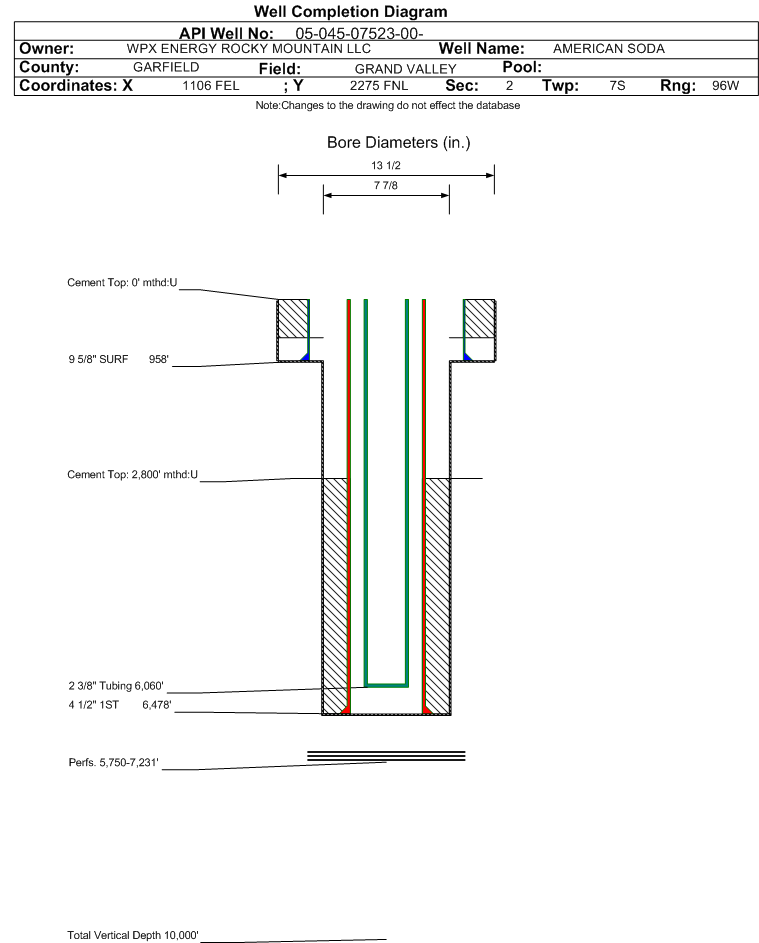

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07523		Well Classification: GW Status: PR - 4/27/2000
Well Name/No:AMERICAN SODA #GM 258-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/27/2000
FacilityID:257146LocationID:323964
County:GARFIELD #045Location:NESE 2 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5212 ft.
Basin:PICEANCE BASIN
Planned Location:2275FSL  1106 FELLat/Long: 39.465846 / -108.071270Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.465858 / -108.071536Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/12/2000             Measured TD: 6484 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/12/2000
Wellbore Permit
Permit #:000392 Expiration Date:4/26/2001
Proposed Top PZ Location:Sec: Twp: Footage: 2110 FNL  1175 FEL
Bottom Hole Location:Sec: Twp: Footage: 2105 FNL  1175 FEL
Proposed Depth/Form:6500 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-3 , Unit Acreage: 40, Drill Unit: SENE
Wellbore Completed
Completion Date:7/11/2000
Spud Date:5/20/2000Spud Date Is:ACTUAL
Measured TD:6484 ft.Measured PB depth:6478 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DUAL IND SPEC DENS DUAL SPACED NEUTRON
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 958 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 295, Top: 0 ft., Bottom: 598 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6478 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1020, Top: 2800 ft., Bottom: 6478 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1500 ft.NN
FORT UNION1806 ft.NN
MESAVERDE3256 ft.NN
CAMEO5791 ft.NN
ROLLINS6350 ft.NN

Formation WMRCM                   Formation Classification:  GW                   Status:  CM - 4/12/2000                 Interval Top: 5750 ft.    Interval Bottom: 7231 ft.

 Completed Information for Formation WILLIAMS FK-ROLLINS-CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FK-ROLLINS-CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:7/11/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6060 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/17/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
CALC_BBLS_H2O 10
CALC_MCF_GAS 1184
CASING_PRESS 1531
MCF_GAS 1184
TUBING_PRESS 1437
Perforation Data:
Interval Top:5750 ft.# Of Holes:70
Interval Bottom:7231 ft.Hole Size:

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 4/12/2000

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)13
Total Gas Produced (MCF)11257
GOR865923
GOR DeterminationMCFE
Average BOE per Day5.351
Average MCFE per Day31.056

 Federal Financial Assurance  i

 Tribal Well  i No
