COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07510		Well Classification: GW Status: PR - 7/31/2000
Well Name/No:YOUBERG #RU 21-7
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/31/2000
FacilityID:257034LocationID:324099
County:GARFIELD #045Location:NENW 7 7S93W 6
Field:RULISON - #75400Elevation:7193 ft.
Basin:PICEANCE BASIN
Planned Location:631FNL  1768 FWLLat/Long: 39.460840 / -107.820617Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.460955 / -107.820235Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/31/2000             Measured TD: 8875 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/31/2000
Wellbore Permit
Permit #:000324 Expiration Date:4/9/2001
Proposed Depth/Form:8750 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/17/2000
Spud Date:5/27/2000Spud Date Is:ACTUAL
Measured TD:8875 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL IND SPEC DENS DUAL SPACED NEUTRON

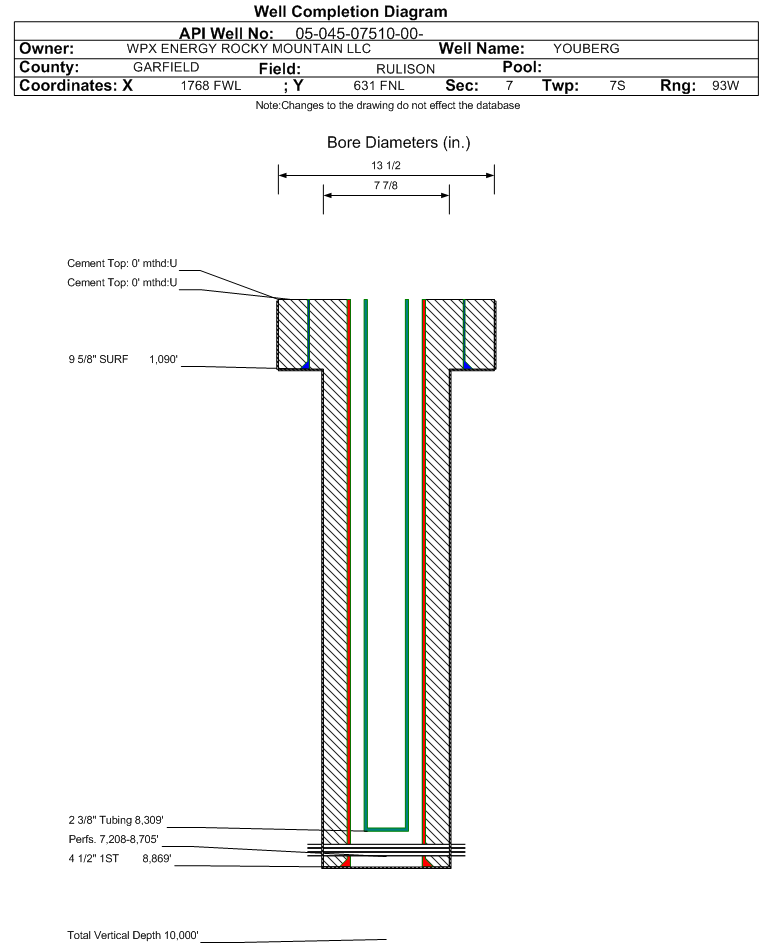

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1090 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 1090 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8869 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: , Bottom: 8869 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G3121 ft.NN
MESAVERDE5561 ft.NN
CAMEO COAL8320 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/31/2000                 Interval Top: 7208 ft.    Interval Bottom: 8705 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/17/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:8309 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/23/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 30
BBLS_OIL 0
CALC_BBLS_H2O 30
CALC_BBLS_OIL 0
CALC_MCF_GAS 1192
CASING_PRESS 1420
MCF_GAS 1192
TUBING_PRESS 1203
Perforation Data:
Interval Top:7208 ft.# Of Holes:64
Interval Bottom:8705 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)6752
GOR613818
GOR DeterminationMCFE
Average BOE per Day3.217
Average MCFE per Day18.681

 Federal Financial Assurance  i

 Tribal Well  i No
