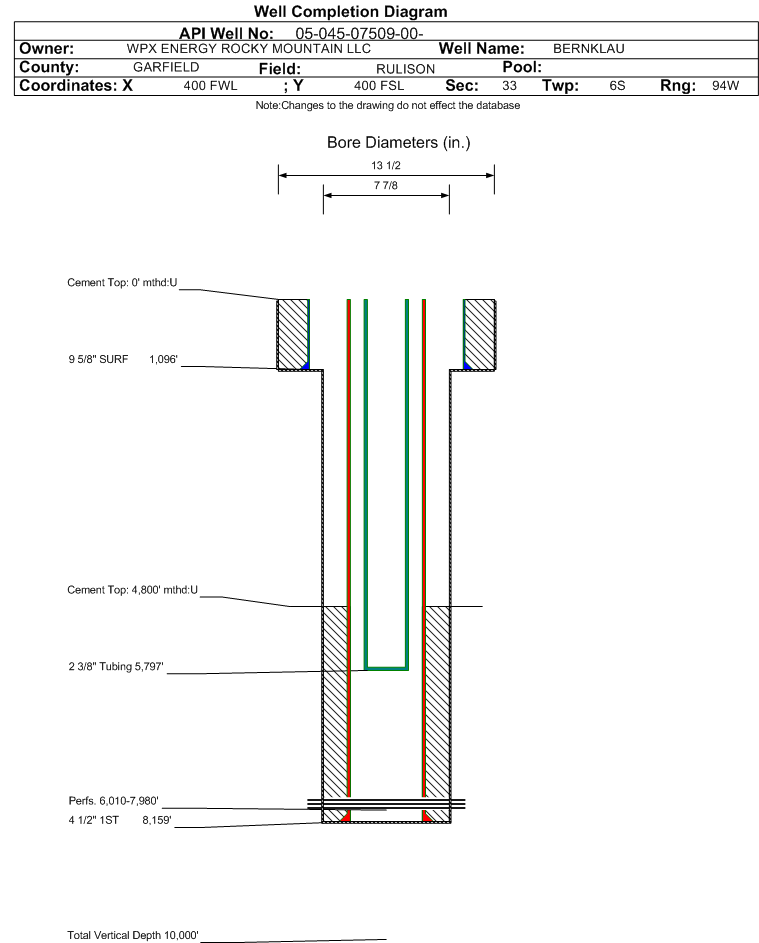

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07509		Well Classification: GW Status: PR - 4/7/2000
Well Name/No:BERNKLAU #RMV 161-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/7/2000
FacilityID:257028LocationID:324098
County:GARFIELD #045Location:SWSW 33 6S94W 6
Field:RULISON - #75400Elevation:6038 ft.
Basin:PICEANCE BASIN
Planned Location:400FSL  400 FWLLat/Long: 39.475260 / -107.900130Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.475491 / -107.900056Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/23/2000             Measured TD: 8165 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/23/2000
Wellbore Permit
Permit #:000319 Expiration Date:3/8/2001
Proposed Depth/Form:7800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-28 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:10/11/2000
Spud Date:8/14/2000Spud Date Is:ACTUAL
Measured TD:8165 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL IND SPEC DENS DUAL SPACED NEUT
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1096 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: , Bottom: 1096 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8159 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1315, Top: 4800 ft., Bottom: 8159 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G2305 ft.NN
MESAVERDE4672 ft.NN
CAMEO COAL7204 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 4/5/2002                  Interval Top: 6010 ft.    Interval Bottom: 7980 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/11/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5797 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/28/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 10
CALC_MCF_GAS 1549
CASING_PRESS 1810
TUBING_PRESS 1660
Perforation Data:
Interval Top:6010 ft.# Of Holes:76
Interval Bottom:7980 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)12748
GOR796750
GOR DeterminationMCFE
Average BOE per Day6.069
Average MCFE per Day35.209

 Federal Financial Assurance  i

 Tribal Well  i No
