COGIS - WELL SCOUT CARD

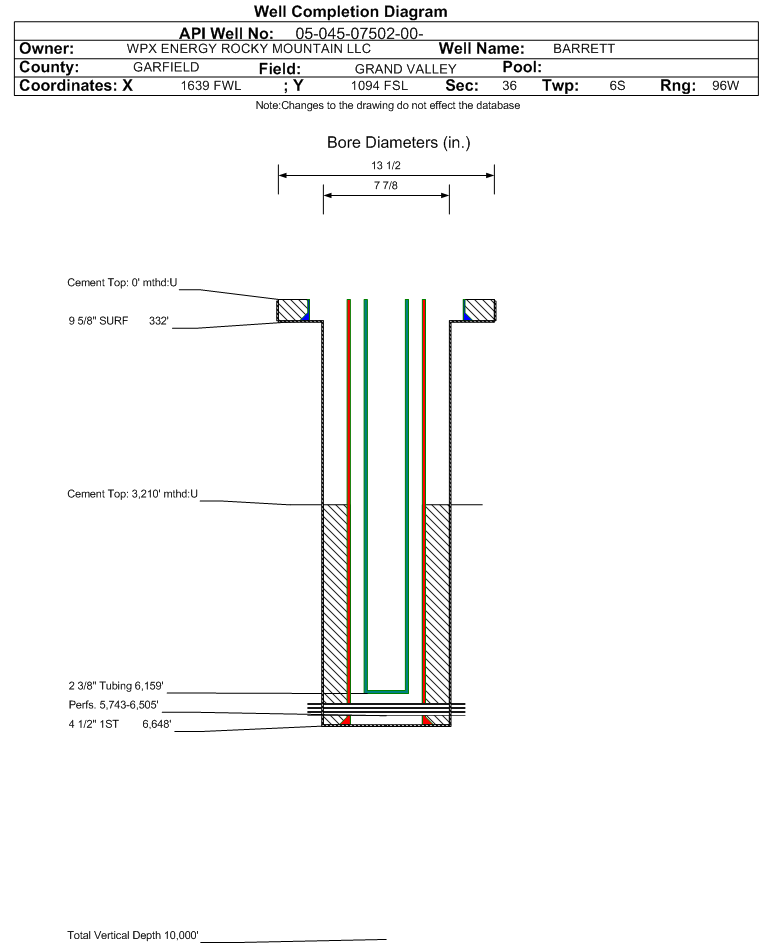

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07502		Well Classification: GW Status: PR - 7/18/2000
Well Name/No:BARRETT #GM 24-36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/18/2000
FacilityID:256882LocationID:334947
County:GARFIELD #045Location:SESW 36 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5452 ft.
Basin:PICEANCE BASIN
Planned Location:1094FSL  1639 FWLLat/Long: 39.476499 / -108.060875Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.476325 / -108.060871Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/18/2000             Measured TD: 6655 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/18/2000
Wellbore Permit
Permit #:000212 Expiration Date:3/6/2001
Proposed Depth/Form:6650 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 479-5 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:6/22/2000
Spud Date:5/10/2000Spud Date Is:ACTUAL
Measured TD:6655 ft.Measured PB depth:6648 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DUAL IND SPEC DENS DUAL SPACED NEUTRON
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 332 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 332 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6648 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 860, Top: 3210 ft., Bottom: 6648 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1803 ft.NN
MESAVERDE3633 ft.NN
CAMEO COAL6256 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/18/2000                 Interval Top: 5743 ft.    Interval Bottom: 6505 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/22/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6159 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/30/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
CALC_BBLS_H2O 10
CALC_MCF_GAS 916
CASING_PRESS 1357
MCF_GAS 916
TUBING_PRESS 1294
Perforation Data:
Interval Top:5743 ft.# Of Holes:34
Interval Bottom:6505 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)3208
GOR
GOR DeterminationMCFE
Average BOE per Day1.517
Average MCFE per Day8.800

 Federal Financial Assurance  i

 Tribal Well  i No
