COGIS - WELL SCOUT CARD

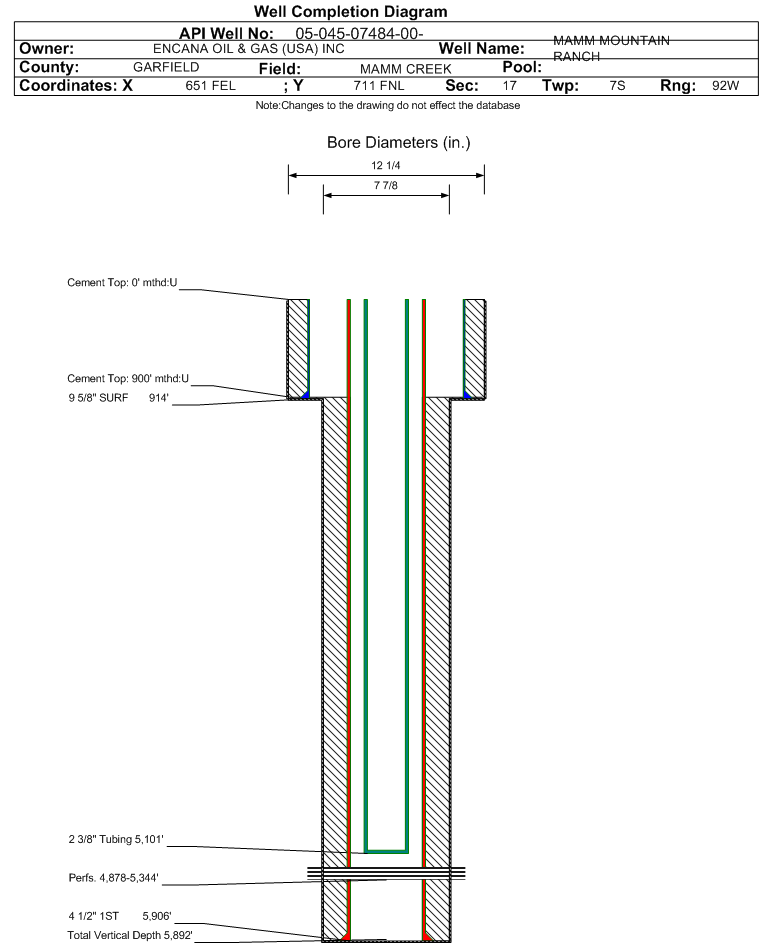

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07484		Well Classification: GW Status: PR - 6/15/2002
Well Name/No:MAMM MOUNTAIN RANCH #17-1 (A17E)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/15/2002
FacilityID:256694LocationID:334953
County:GARFIELD #045Location:NENE 17 7S92W 6
Field:MAMM CREEK - #52500Elevation:6068 ft.
Basin:PICEANCE BASIN
Planned Location:711FNL  651 FELLat/Long: 39.451761 / -107.682853Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.451810 / -107.682860Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/15/2002             Measured TD: 5906 ft.    Vertical TD: 5892 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/15/2002
Wellbore Permit
Permit #:000091 Expiration Date:2/8/2001
Proposed Depth/Form:5870 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: 40, Drill Unit: NENE
Wellbore Completed
Completion Date:3/9/2000
Spud Date:2/21/2000Spud Date Is:ACTUAL
Measured TD:5906 ft.Measured PB depth:5858 ft.
True Vertical TD:5892 ft.True Vertical PB depth:5844 ft.
Top PZ Location:Sec: Twp: Footage: 646 FNL  790 FEL
Bottom Hole Location:Sec: Twp: Footage: 624 FNL  674 FEL
Log Types:DUAL IND, NEUT DENS & CSNG
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 914 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 475, Top: 0 ft., Bottom: 914 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5906 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1180, Top: 900 ft., Bottom: 5906 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK2445 ft.5480 ft.NN
COAL5480 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 6/15/2002                 Interval Top: 4878 ft.    Interval Bottom: 5344 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:1.125 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/9/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5101 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/30/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 7
BTU_GAS 1135
CALC_BBLS_H2O 3
CALC_BBLS_OIL 7
CALC_MCF_GAS 992
CASING_PRESS 1850
MCF_GAS 992
TUBING_PRESS 1775
Perforation Data:
Interval Top:4878 ft.# Of Holes:22
Interval Bottom:5344 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)4
Total Gas Produced (MCF)4530
GOR1132500
GOR DeterminationMCFE
Average BOE per Day2.154
Average MCFE per Day12.479

 Federal Financial Assurance  i Y

 Tribal Well  i No
