COGIS - WELL SCOUT CARD

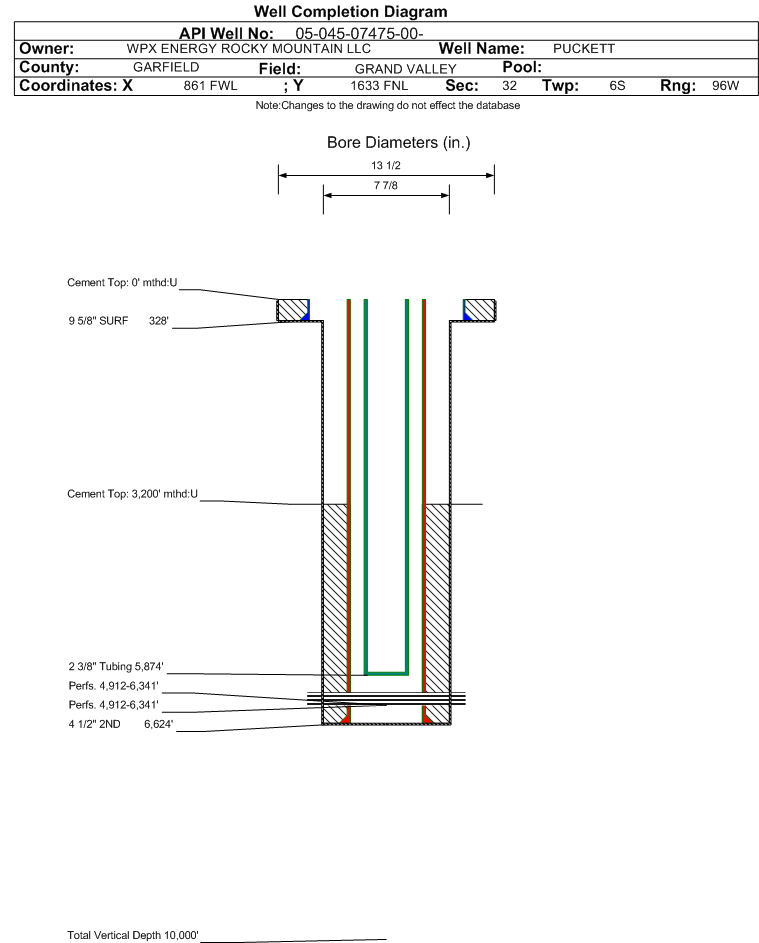

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07475		Well Classification: GW Status: PR - 1/4/2000
Well Name/No:PUCKETT #GM 12-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/4/2000
FacilityID:256599LocationID:335394
County:GARFIELD #045Location:SWNW 32 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5820 ft.
Basin:PICEANCE BASIN
Planned Location:1633FNL  861 FWLLat/Long: 39.483118 / -108.138667Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.483223 / -108.138680Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/4/2000             Measured TD: 6634 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/4/2000
Wellbore Permit
Permit #:000040 Expiration Date:1/18/2001
Proposed Depth/Form:6750 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-1 , Unit Acreage: 320, Drill Unit: W2
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6750 ft., Weight: 12.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom:
Wellbore Completed
Completion Date:4/26/2000
Spud Date:3/7/2000Spud Date Is:ACTUAL
Measured TD:6634 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON
Log Types:DUAL IND COMP DENS COMP NEUT GR, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 328 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: 328 ft., Determination Method:
Casing:String Type: 2ND, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6624 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 980, Top: 3200 ft., Bottom: 6623 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2015 ft.NN
MESAVERDE3602 ft.NN
CAMEO COAL6129 ft.NN
ROLLINS6606 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 1/4/2000                  Interval Top: 4912 ft.    Interval Bottom: 6341 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/26/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5874 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/4/2000Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 20
CALC_MCF_GAS 1160
CASING_PRESS 1523
TUBING_PRESS 1377
Perforation Data:
Interval Top:4912 ft.# Of Holes:76
Interval Bottom:6341 ft.Hole Size:

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 5/4/2000                  Interval Top: 4912 ft.    Interval Bottom: 6341 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/26/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5874 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/4/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 20
CALC_BBLS_H2O 20
CALC_MCF_GAS 1160
CASING_PRESS 1523
MCF_GAS 1160
TUBING_PRESS 1377
Perforation Data:
Interval Top:4912 ft.# Of Holes:76
Interval Bottom:6341 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)10815
GOR901250
GOR DeterminationMCFE
Average BOE per Day5.143
Average MCFE per Day29.833

 Federal Financial Assurance  i

 Tribal Well  i No
