Wellbore #00 Wellbore Classification: GW Status: PR - 12/8/2000 Measured TD: 7242 ft. Vertical TD: 7241 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/8/2000 | | Wellbore Permit | | | Permit #: | 010105 | Expiration Date: | 1/17/2002 | | Proposed Top PZ Location: | Sec:18 Twp: 7S 92W | Footage: 1814 FSL 817 FWL | | Bottom Hole Location: | Sec:18 Twp: 7S 92W | Footage: 1980 FSL 877 FWL | | Proposed Depth/Form: | 7250 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | 55972X | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 60 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: , Top: 0 ft., Bottom: 60 ft. |
| | |

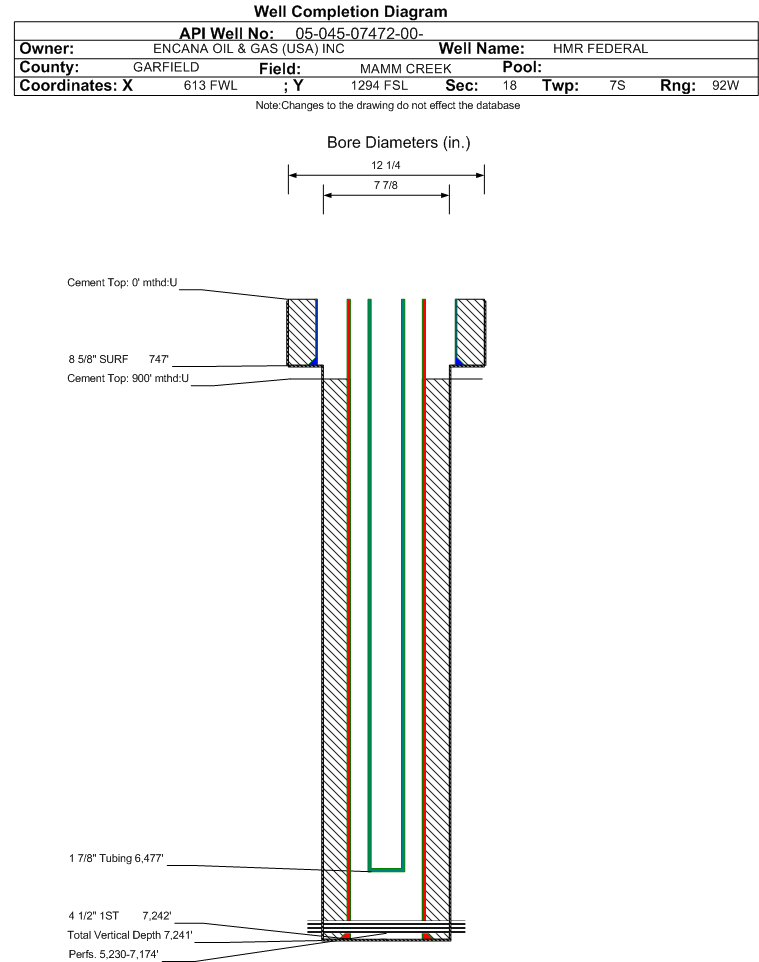

| Wellbore Completed | | Completion Date: | 11/2/2001 | | Spud Date: | 8/9/2001 | Spud Date Is: | ACTUAL | | Measured TD: | 7242 ft. | Measured PB depth: | 7242 ft. | | True Vertical TD: | 7241 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 1733 FSL 852 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1908 FSL 1129 FWL | | Log Types: | CCL/GR/CBL/RST | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 747 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 360, Top: 0 ft., Bottom: 747 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7242 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 975, Top: 900 ft., Bottom: 7242 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 4027 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 4/1/2013 Interval Top: 5230 ft. Interval Bottom: 7174 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | PRODUCING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/2/2001 | | Treatment Summary: | STAGE 1; ACID BALLOUT; 24 BBLS 7 1/2% HCL W/32 7/8" 1.1.S.G. BALLSEALERS 6790'-7174',20 HOLES 0.34", 3058 HYBOR G30,341,180# 20/40 SAND. STAGE 2; ACID BALLOUT; 24 BBL 7 1/2% HCL W/34 7/8" 1.1.S.G, BALL SEALERS 5960'-6418', 22 HOLES, 34",2609 BBL HYBOR |
| | Tubing Size: | 1.9 in. | Tubing Setting Depth: | 6477 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/3/2001 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 17 | | BBLS_OIL | 3 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 17 | | CALC_BBLS_OIL | 3 | | CALC_GOR | 369 | | CALC_MCF_GAS | 1106 | | CASING_PRESS | 800 | | MCF_GAS | 1106 |
| | Perforation Data: | | Interval Top: | 5230 ft. | # Of Holes: | 82 | | Interval Bottom: | 7174 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 16 |
| Total Gas Produced (MCF) | 7798 |
| GOR | 487375 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.728 |
| Average MCFE per Day | 21.617 |
| Federal Financial Assurance | i | Y |
|
|
