COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-07467		Well Classification: GW	Status: PR - 12/22/1999
Well Name/No:	BATTLEMENT MESA #PA 41-9 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PR	Status Date	12/22/1999
FacilityID:	256513	LocationID:	334964
County:	GARFIELD #045	Location:	NENE 9 7S95W 6
Field:	PARACHUTE - #67350	Elevation:	5853 ft.
Basin:	PICEANCE BASIN
Planned Location:	667FNL 854 FEL	Lat/Long: 39.457749 / -107.996623	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.457540 / -107.996456	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 12/22/1999 Measured TD: 125 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 12/22/1999
Wellbore Permit
Permit #:	991004	Expiration Date:	12/21/2000
Proposed Depth/Form:	7200 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 440-12 , Unit Acreage: 640, Drill Unit: ALL

Wellbore Completed
Completion Date:	7/19/2000
Spud Date:	4/13/2000	Spud Date Is:	ACTUAL
Measured TD:	125 ft.	Measured PB depth:
True Vertical TD:		True Vertical PB depth:
Log Types:	DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON
Log Types:	DUAL IND SPEC DENS DUAL SPACED NEUTRON

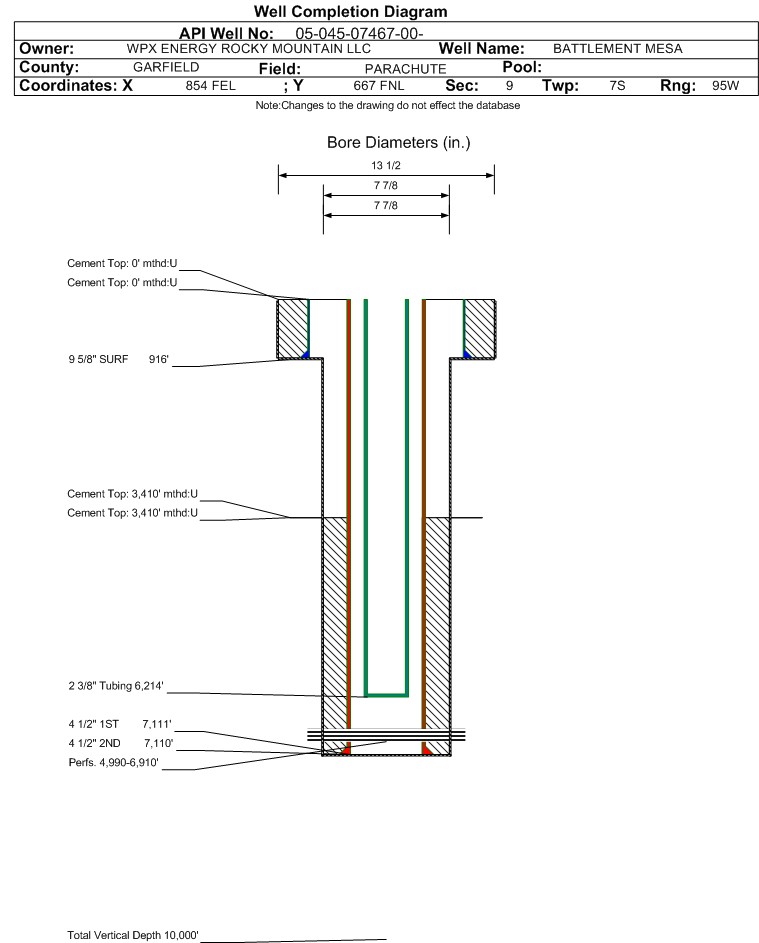

Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 916 ft., Weight: 36 , Citings Type: ACTUAL
Cement:	Sacks: 460, Top: , Bottom: 916 ft., Determination Method:
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7111 ft., Weight: 11.6# , Citings Type: ACTUAL
Cement:	Sacks: 870, Top: 3410 ft., Bottom: 7110 ft., Determination Method:
Casing:	String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 93 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: , Top: , Bottom: , Determination Method:
Casing:	String Type: 2ND, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7110 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:	Sacks: 870, Top: 3410 ft., Bottom: 7110 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
UNKNOWN	1861 ft.		N	N
FORT UNION	2401 ft.		N	N
WASATCH G	2403 ft.		N	N
MESAVERDE	3960 ft.		N	N
CAMEO COAL	6496 ft.		N	N
ROLLINS	7037 ft.		N	N

Formation WFCM Formation Classification: GW Status: PR - 11/1/2012 Interval Top: 4990 ft. Interval Bottom: 6910 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	N/A	Choke Size:
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:	FLOWING
Open Hole Completion:	No

Formation Treatment
Treatment Date:	7/19/2000
Treatment Summary:

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	6214 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	7/27/2001	Test Method:	FLOWING
Hours Tested:	24	Gas Type:
Gas Disposal:	SOLD
BBLS_H2O	10
BBLS_OIL	0
CALC_BBLS_H2O	10
CALC_BBLS_OIL	0
CALC_MCF_GAS	196
MCF_GAS	196
TUBING_PRESS	1463

Perforation Data:
Interval Top:	4990 ft.	# Of Holes:	62
Interval Bottom:	6910 ft.	Hole Size:

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	2
Total Gas Produced (MCF)	4036
GOR	2018000
GOR Determination	MCFE
Average BOE per Day	1.916
Average MCFE per Day	11.097

Federal Financial Assurance

Tribal Well
