COGIS - WELL SCOUT CARD

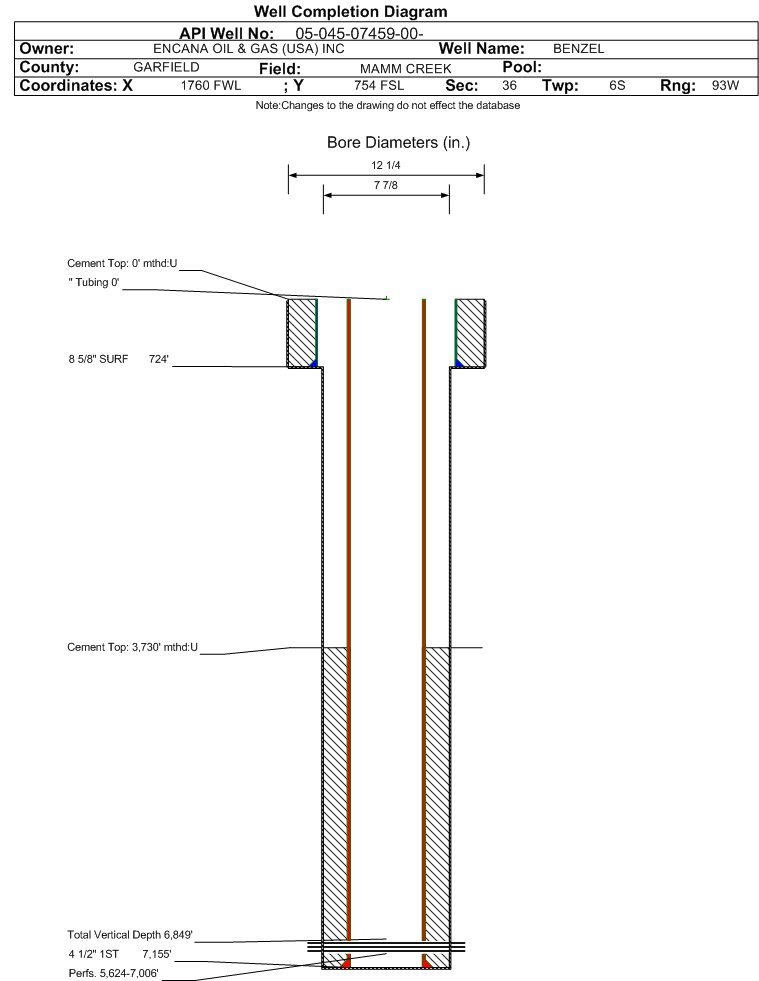

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07459		Well Classification: GW Status: PR - 9/1/2024
Well Name/No:BENZEL #1-11 (N36NW)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/1/2024
FacilityID:256487LocationID:334944
County:GARFIELD #045Location:SESW 36 6S93W 6
Field:MAMM CREEK - #52500Elevation:6036 ft.
Basin:PICEANCE BASIN
Planned Location:754FSL  1760 FWLLat/Long: 39.477901 / -107.727075Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.477930 / -107.727020Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/1/2024             Measured TD: 7172 ft.    Vertical TD: 6849 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/1/2024
Wellbore Permit
Permit #:990987 Expiration Date:12/20/1999
Proposed Top PZ Location:Sec:1 Twp: T7S R93W Footage: 837 FNL  1927 FWL
Bottom Hole Location:Sec:1 Twp: 7S 93W Footage: 1994 FWL  1980 FSL
Proposed Depth/Form:6850 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA "PA Unit Number:56608X
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: 9473, Drill Unit: U
Wellbore Completed
Completion Date:6/10/2000
Spud Date:3/1/2000Spud Date Is:ACTUAL
Measured TD:7172 ft.Measured PB depth:7113 ft.
True Vertical TD:6849 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 837 FNL  1927 FWL
Bottom Hole Location:Sec: Twp: Footage: 1037 FNL  2047 FWL
Log Types:CBL, AI/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 724 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 724 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7155 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 780, Top: 3730 ft., Bottom: 7155 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH3212 ft.3977 ft.NN
OHIO CREEK3977 ft.4692 ft.NN
WILLIAMS FORK4692 ft.5306 ft.NN
COAL6994 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 9/1/2024                  Interval Top: 5624 ft.    Interval Bottom: 7006 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/10/2000
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/7/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 13
BBLS_OIL 3
CALC_BBLS_H2O 13
CALC_BBLS_OIL 3
CALC_GOR 238000
CALC_MCF_GAS 715
MCF_GAS 715
TUBING_PRESS 375
Perforation Data:
Interval Top:5624 ft.# Of Holes:
Interval Bottom:7006 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)6472
GOR
GOR DeterminationMCFE
Average BOE per Day3.048
Average MCFE per Day17.691

 Federal Financial Assurance  i Y

 Tribal Well  i No
