COGIS - WELL SCOUT CARD

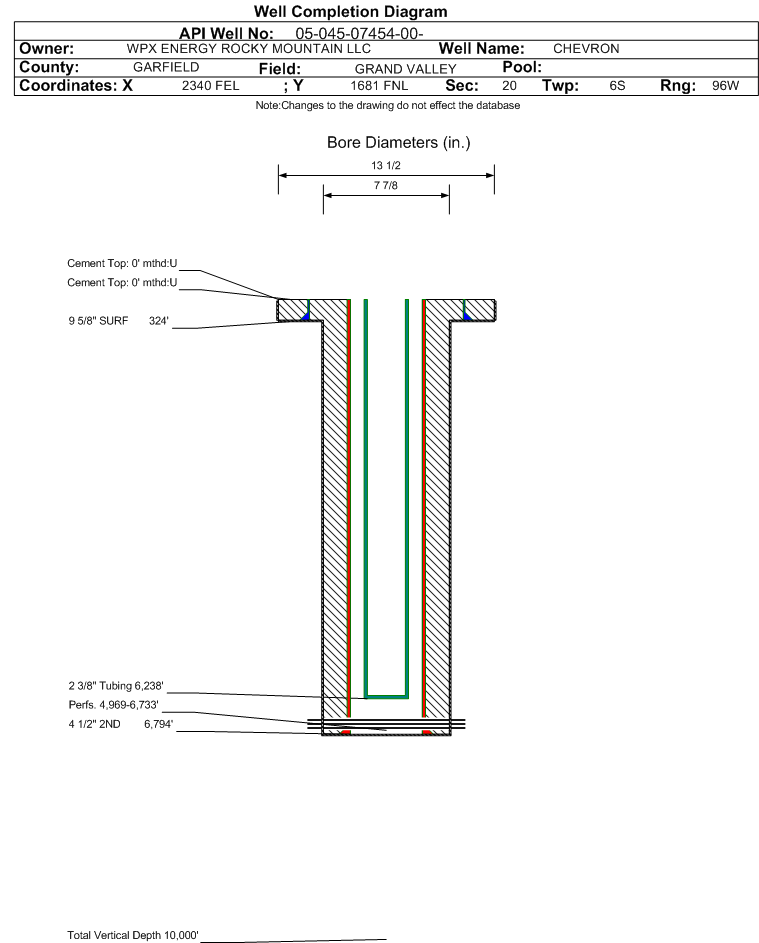

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07454		Well Classification: GW Status: PR - 12/9/1999
Well Name/No:CHEVRON #GM 32-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/9/1999
FacilityID:256404LocationID:324081
County:GARFIELD #045Location:SWNE 20 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5539 ft.
Basin:PICEANCE BASIN
Planned Location:1681FNL  2340 FELLat/Long: 39.512388 / -108.131697Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/9/1999             Measured TD: 6806 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/9/1999
Wellbore Permit
Permit #:990943 Expiration Date:12/8/2000
Proposed Depth/Form:6900 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 510-1 , Unit Acreage: 320, Drill Unit: N2
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6900 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom:
Wellbore Completed
Completion Date:4/11/2000
Spud Date:2/22/2000Spud Date Is:ACTUAL
Measured TD:6806 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL IND SPEC DENS DUAL SP NEUT
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 324 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: 324 ft., Determination Method:
Casing:String Type: 2ND, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6794 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 870, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G2009 ft.NN
MESAVERDE3719 ft.NN
CAMEO COAL6219 ft.NN
ROLLINS6748 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/9/1999                 Interval Top: 4969 ft.    Interval Bottom: 6733 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/11/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6238 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/13/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
CALC_BBLS_H2O 10
CALC_MCF_GAS 1292
CASING_PRESS 1496
MCF_GAS 1292
TUBING_PRESS 1358
Perforation Data:
Interval Top:4969 ft.# Of Holes:66
Interval Bottom:6733 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)8538
GOR776181
GOR DeterminationMCFE
Average BOE per Day4.063
Average MCFE per Day23.573

 Federal Financial Assurance  i

 Tribal Well  i No
