COGIS - WELL SCOUT CARD

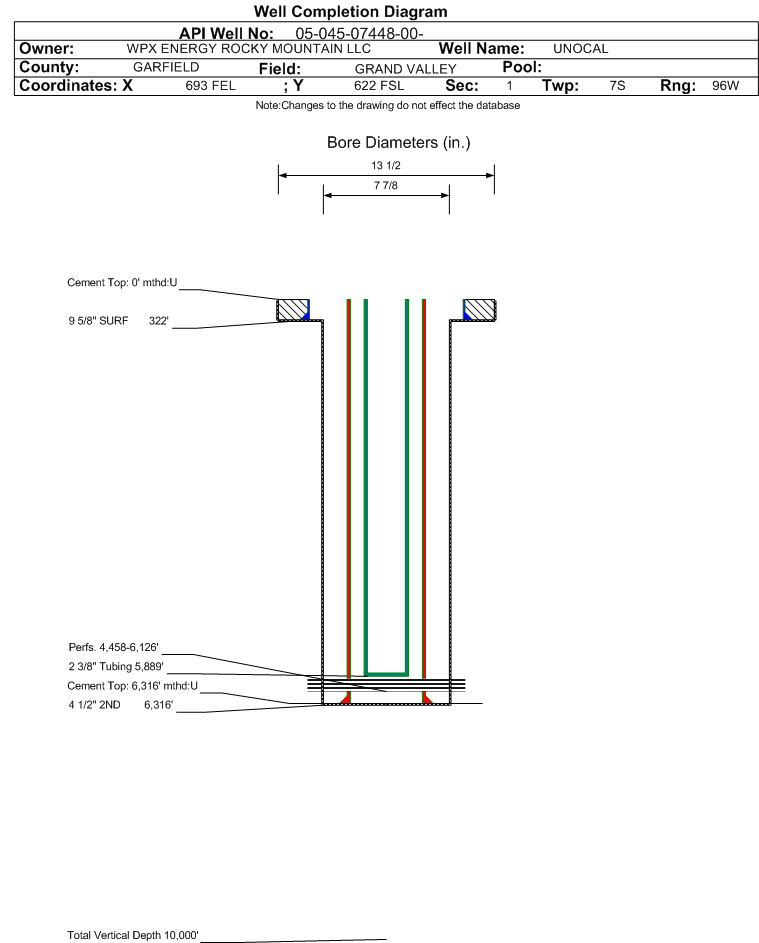

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07448		Well Classification: GW Status: PR - 11/19/1999
Well Name/No:UNOCAL #GM 44-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/19/1999
FacilityID:256385LocationID:324080
County:GARFIELD #045Location:SESE 1 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5205 ft.
Basin:PICEANCE BASIN
Planned Location:622FSL  693 FELLat/Long: 39.461379 / -108.051434Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.461451 / -108.051705Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/19/1999             Measured TD: 6327 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/19/1999
Wellbore Permit
Permit #:990884 Expiration Date:11/18/2000
Proposed Depth/Form:6450 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 139-28 , Unit Acreage: 320, Drill Unit: S2
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6450 ft., Weight: 11.6&12.6, Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom:
Wellbore Completed
Completion Date:N/A
Spud Date:4/16/2000Spud Date Is:ACTUAL
Measured TD:6327 ft.Measured PB depth:6316 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DUAL IND SPEC DENS DUAL SPA NEUT.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 322 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 322 ft., Determination Method:
Casing:String Type: 2ND, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6316 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 800, Top: 6316 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1487 ft.NN
MESAVERDE3309 ft.NN
CAMEO COAL5844 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/19/1999                Interval Top: 4458 ft.    Interval Bottom: 6126 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:6/14/2000Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/14/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5889 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/19/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
CALC_BBLS_H2O 10
CALC_MCF_GAS 1552
CASING_PRESS 1793
MCF_GAS 1552
TUBING_PRESS 1749
Perforation Data:
Interval Top:4458 ft.# Of Holes:66
Interval Bottom:6126 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)13
Total Gas Produced (MCF)10971
GOR843923
GOR DeterminationMCFE
Average BOE per Day5.213
Average MCFE per Day30.283

 Federal Financial Assurance  i

 Tribal Well  i No
