Wellbore #00 Wellbore Classification: GW Status: PR - 11/10/1999 Measured TD: 6800 ft. Vertical TD: 6413 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/10/1999 | | Wellbore Permit | | | Permit #: | 990859 | Expiration Date: | 11/9/2000 | | Proposed Top PZ Location: | Sec:6 Twp: 7S 92W | Footage: 930 FNL 692 FWL | | Bottom Hole Location: | Sec:6 Twp: 7S 92W | Footage: 977 FWL 930 FNL | | Proposed Depth/Form: | 6400 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | MAMM CREEK | Unit Number: | 82500 | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: 52678, Drill Unit: U |
| | |

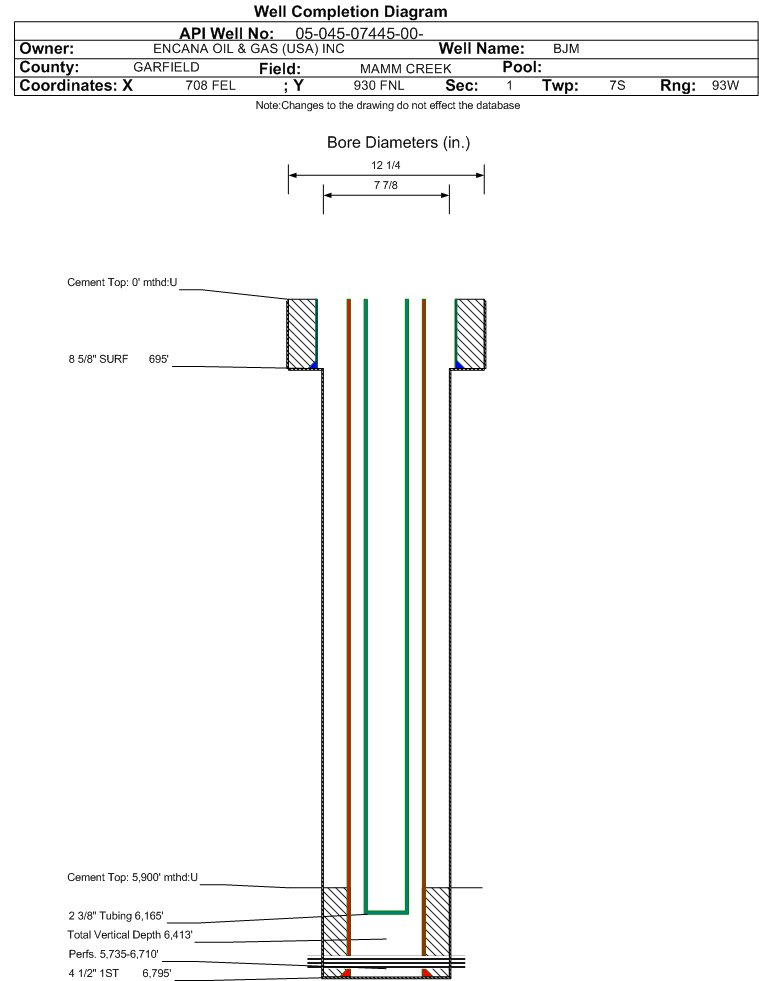

| Wellbore Completed | | Completion Date: | 3/23/2000 | | Spud Date: | 12/23/1999 | Spud Date Is: | ACTUAL | | Measured TD: | 6800 ft. | Measured PB depth: | 6710 ft. | | True Vertical TD: | 6413 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 930 FNL 692 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 930 FNL 977 FWL | | Log Types: | CBL,AI/GR,CN/LD/GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 695 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 360, Top: 0 ft., Bottom: 695 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6795 ft., Weight: 4.5 , Citings Type: ACTUAL | | Cement: | Sacks: 900, Top: 5900 ft., Bottom: 6795 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 2855 ft. | 3584 ft. | N | N | | OHIO CREEK | 3584 ft. | 4408 ft. | N | N | | WILLIAMS FORK | 4408 ft. | 4999 ft. | N | N | | COAL | 6737 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 11/10/1999 Interval Top: 5735 ft. Interval Bottom: 6710 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/23/2000 | | Treatment Summary: | STAGE 1: PERFS: 6177-6710 FRAC W/1855 BBLS VISTAR 16 & 201617# 20/40 WHITE SAND. STAGE 2: PERFS: 5735-5889 FRAC W/1778 BBL VISTAR, 176186# 20/40 WHITE SAND & 7500# FLEX SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6165 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/4/2000 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 5 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 5 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 303 | | CASING_PRESS | 360 | | MCF_GAS | 303 | | TUBING_PRESS | 240 |
| | Perforation Data: | | Interval Top: | 5735 ft. | # Of Holes: | 52 | | Interval Bottom: | 6710 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 18 |
| Total Gas Produced (MCF) | 14889 |
| GOR | 827166 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.086 |
| Average MCFE per Day | 41.083 |
| Federal Financial Assurance | i | Y |
|
|
