Wellbore #00 Wellbore Classification: GW Status: PR - 10/27/1999 Measured TD: 5656 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/27/1999 | | Wellbore Permit | | | Permit #: | 990805 | Expiration Date: | 10/26/2000 | | Proposed Depth/Form: | 5735 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-1 , Unit Acreage: 40, Drill Unit: SWSE |
| | |

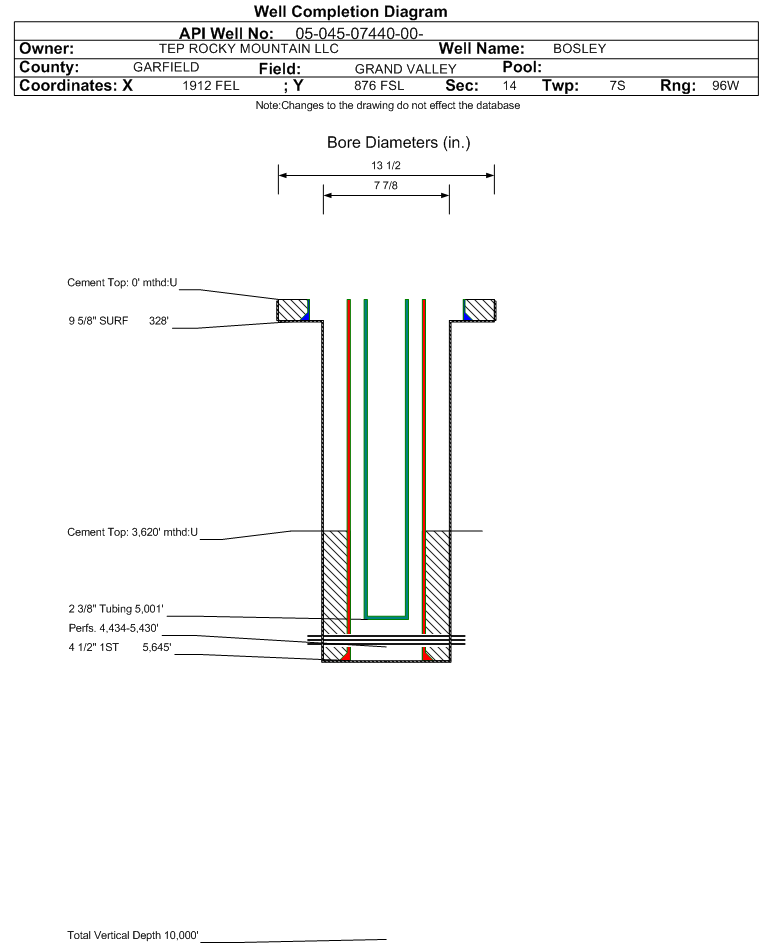

| Wellbore Completed | | Completion Date: | 9/10/2000 | | Spud Date: | 9/2/2000 | Spud Date Is: | ACTUAL | | Measured TD: | 5656 ft. | Measured PB depth: | 5575 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Top PZ Location: | Sec:14 Twp: 7S 96W | Footage: 846 FSL 1938 FEL | | Bottom Hole Location: | Sec:14 Twp: 7S 96W | Footage: 764 FSL 1972 FEL | | Log Types: | DUAL IND SPEC DENS DUAL SPA NEUT. | | Log Types: | CBL/RPM/MUD; COGCC confirmed of having the OH logs; | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 328 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 0 ft., Bottom: 328 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5645 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 835, Top: 3620 ft., Bottom: 5645 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 3860 ft., Depth: 3860 ft., Bottom: 4100 ft., Sacks: 200, Method: SQUEEZE | | Additional Cement: | String Type: 1ST , Top: 3768 ft., Depth: 3850 ft., Bottom: 4193 ft., Sacks: 50, Method: SQUEEZE | | Additional Cement: | String Type: 1ST , Top: 4315 ft., Depth: 4434 ft., Bottom: 4650 ft., Sacks: 300, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1067 ft. | | | | | WASATCH | 1071 ft. | | N | N | | FORT UNION | 1351 ft. | | N | N | | MESAVERDE | 2650 ft. | | | | | WILLIAMS FORK | 2650 ft. | | | | | CAMEO | 5114 ft. | | | | | CAMEO COAL | 5114 ft. | | N | N | | ROLLINS | 5578 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 10/27/1999 Interval Top: 4434 ft. Interval Bottom: 5430 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/3/2000 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5001 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/13/2000 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 20 | | CALC_BBLS_H2O | 20 | | CALC_MCF_GAS | 1343 | | CASING_PRESS | 1537 | | MCF_GAS | 1343 | | TUBING_PRESS | 1560 |
| | Perforation Data: | | Interval Top: | 4434 ft. | # Of Holes: | 44 | | Interval Bottom: | 5430 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1 |
| Total Gas Produced (MCF) | 3946 |
| GOR | 3946000 |
| GOR Determination | MCFE |
| Average BOE per Day | 1.866 |
| Average MCFE per Day | 10.826 |
| Federal Financial Assurance | i | |
|
|
