COGIS - WELL SCOUT CARD

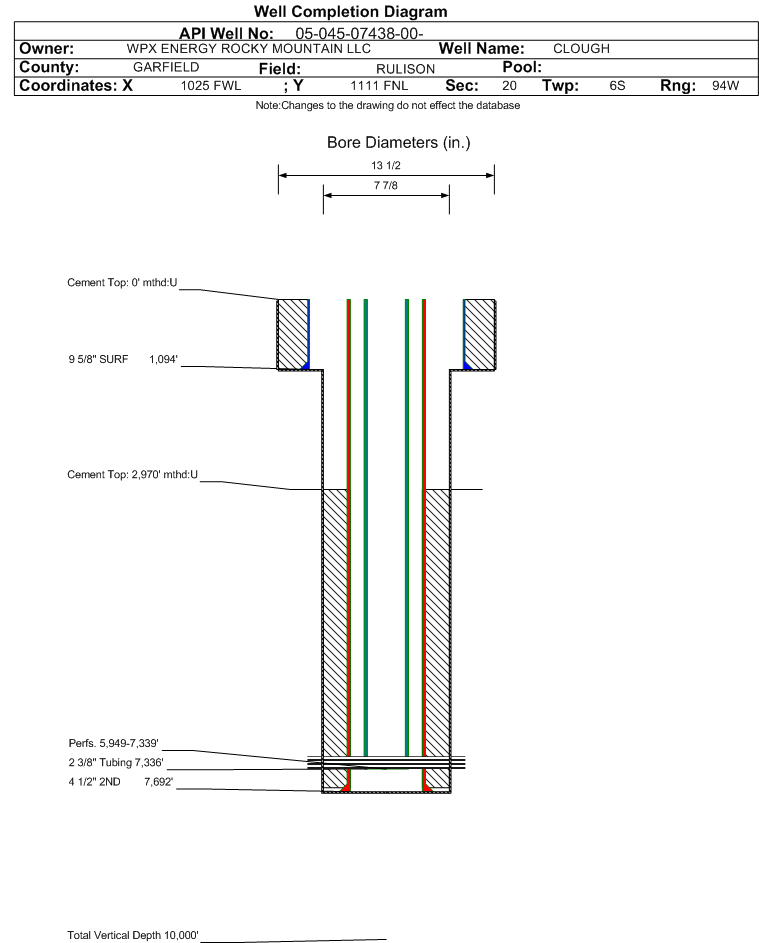

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07438		Well Classification: GW Status: PR - 10/20/1999
Well Name/No:CLOUGH #204-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/20/1999
FacilityID:256311LocationID:335381
County:GARFIELD #045Location:NWNW 20 6S94W 6
Field:RULISON - #75400Elevation:5580 ft.
Basin:PICEANCE BASIN
Planned Location:1111FNL  1025 FWLLat/Long: 39.514629 / -107.917631Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.514691 / -107.917638Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/20/1999             Measured TD: 7702 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/20/1999
Wellbore Permit
Permit #:990775 Expiration Date:10/19/2000
Proposed Depth/Form:7700 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-33 , Unit Acreage: 320, Drill Unit: W2
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7700 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom: 7700 ft.
Wellbore Completed
Completion Date:N/A
Spud Date:11/20/1999Spud Date Is:ACTUAL
Measured TD:7702 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACE NEU.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1094 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 545, Top: 0 ft., Bottom: 1094 ft., Determination Method:
Casing:String Type: 2ND, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7692 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1010, Top: 2970 ft., Bottom: 7629 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2084 ft.NN
MESAVERDE4500 ft.NN
CAMEO COAL7187 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/20/1999                Interval Top: 5949 ft.    Interval Bottom: 7339 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/12/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7336 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/12/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 20
BBLS_OIL 0
CALC_BBLS_H2O 20
CALC_BBLS_OIL 0
CALC_MCF_GAS 2182
CASING_PRESS 1638
MCF_GAS 2182
TUBING_PRESS 1402
Perforation Data:
Interval Top:5949 ft.# Of Holes:58
Interval Bottom:7339 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)13
Total Gas Produced (MCF)3679
GOR283000
GOR DeterminationMCFE
Average BOE per Day1.775
Average MCFE per Day10.294

 Federal Financial Assurance  i Y

 Tribal Well  i No
