COGIS - WELL SCOUT CARD

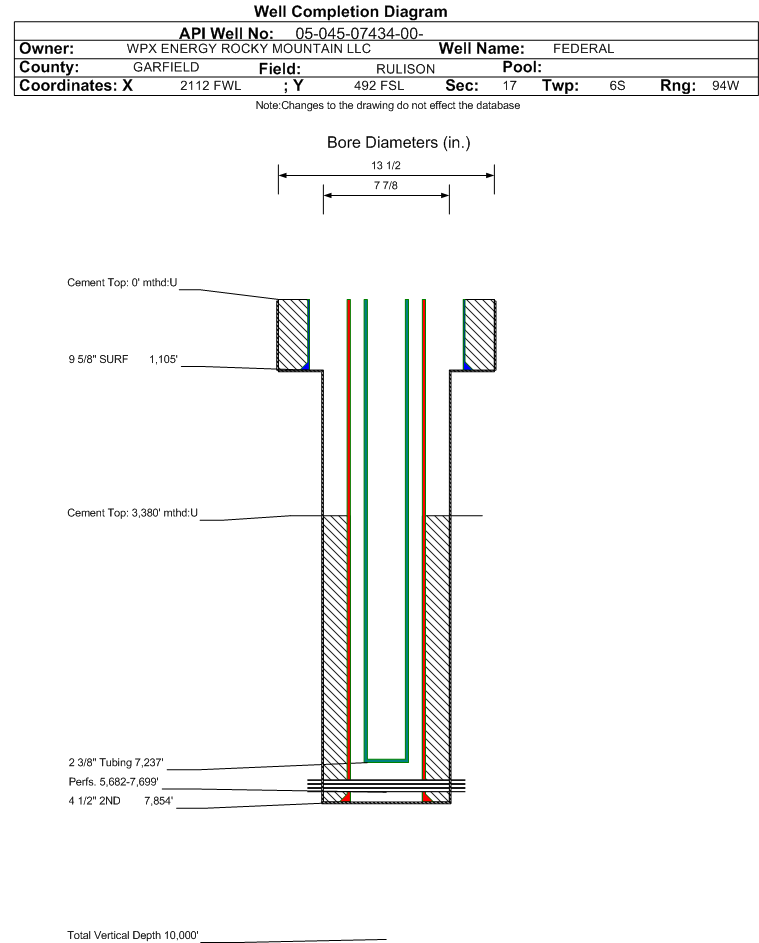

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07434		Well Classification: GW Status: PR - 9/21/1999
Well Name/No:FEDERAL #RMV 60-17
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:CO070P0885
Facility Status:PRStatus Date9/21/1999
FacilityID:256109LocationID:324076
County:GARFIELD #045Location:SESW 17 6S94W 6
Field:RULISON - #75400Elevation:5608 ft.
Basin:PICEANCE BASIN
Planned Location:492FSL  2112 FWLLat/Long: 39.519099 / -107.913831Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.519157 / -107.913831Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/21/1999             Measured TD: 7860 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/21/1999
Wellbore Permit
Permit #:990658 Expiration Date:9/20/2000
Proposed Depth/Form:8235 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-28 , Unit Acreage: 320, Drill Unit: W/2
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: 25, Top: 0 ft., Bottom: 45 ft.
Casing:String Type: 1ST, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1100 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 575, Top: 0 ft., Bottom: 1100 ft.
Wellbore Completed
Completion Date:9/15/2000
Spud Date:7/4/2000Spud Date Is:ACTUAL
Measured TD:7860 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1105 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: , Bottom: 1105 ft., Determination Method:
Casing:String Type: 2ND, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7854 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1445, Top: 3380 ft., Bottom: 7853 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G2086 ft.NN
MESAVERDE4529 ft.NN
CAMEO COAL7231 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 9/21/1999                 Interval Top: 5682 ft.    Interval Bottom: 7699 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:9/15/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7237 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/24/2000Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 15
CALC_MCF_GAS 1662
CASING_PRESS 2084
TUBING_PRESS 1933
Perforation Data:
Interval Top:5682 ft.# Of Holes:102
Interval Bottom:7699 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)41
Total Gas Produced (MCF)33022
GOR805414
GOR DeterminationMCFE
Average BOE per Day15.716
Average MCFE per Day91.133

 Federal Financial Assurance  i Y

 Tribal Well  i No
