COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07430		Well Classification: GW Status: PR - 9/20/1999
Well Name/No:CLOUGH #RMV 210-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/20/1999
FacilityID:256100LocationID:335342
County:GARFIELD #045Location:SWSE 20 6S94W 6
Field:RULISON - #75400Elevation:5306 ft.
Basin:PICEANCE BASIN
Planned Location:606FSL  1517 FELLat/Long: 39.504999 / -107.908101Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.505101 / -107.908133Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/20/1999             Measured TD: 7494 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/20/1999
Wellbore Permit
Permit #:990652 Expiration Date:9/19/2000
Proposed Depth/Form:7300 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-29 , Unit Acreage: 320, Drill Unit: E2
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7300 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:2/17/2000
Spud Date:12/16/1999Spud Date Is:ACTUAL
Measured TD:7494 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON

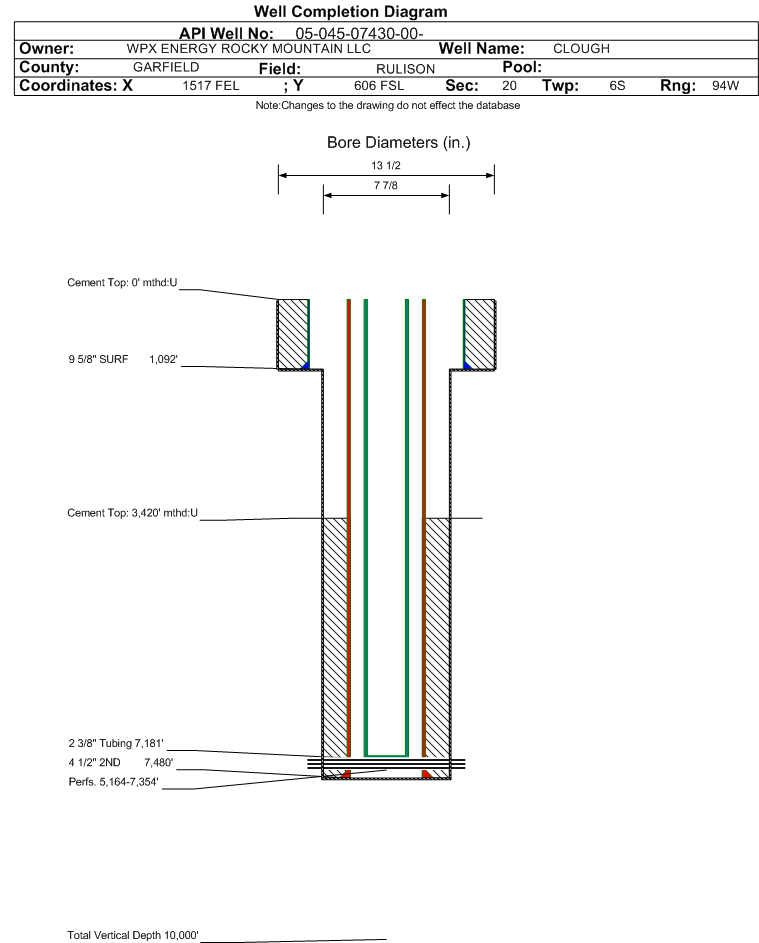

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1092 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 540, Top: 0 ft., Bottom: 1092 ft., Determination Method:
Casing:String Type: 2ND, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7480 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1180, Top: 3420 ft., Bottom: 7480 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1686 ft.NN
MESAVERDE4122 ft.NN
CAMEO COAL6783 ft.NN

Formation WFCMC                   Formation Classification:  GW                   Status:  CM - 9/20/1999                 Interval Top: 5164 ft.    Interval Bottom: 7354 ft.

 Completed Information for Formation WILLIAMS FORK-CAMEO COAL
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK-CAMEO COALCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/17/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7181 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/19/2000Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 30
CALC_MCF_GAS 1970
CASING_PRESS 2366
TUBING_PRESS 2253
Perforation Data:
Interval Top:5164 ft.# Of Holes:100
Interval Bottom:7354 ft.Hole Size:

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/13/2000

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)50
Total Gas Produced (MCF)22795
GOR455900
GOR DeterminationMCFE
Average BOE per Day10.906
Average MCFE per Day63.255

 Federal Financial Assurance  i

 Tribal Well  i No
