COGIS - WELL SCOUT CARD

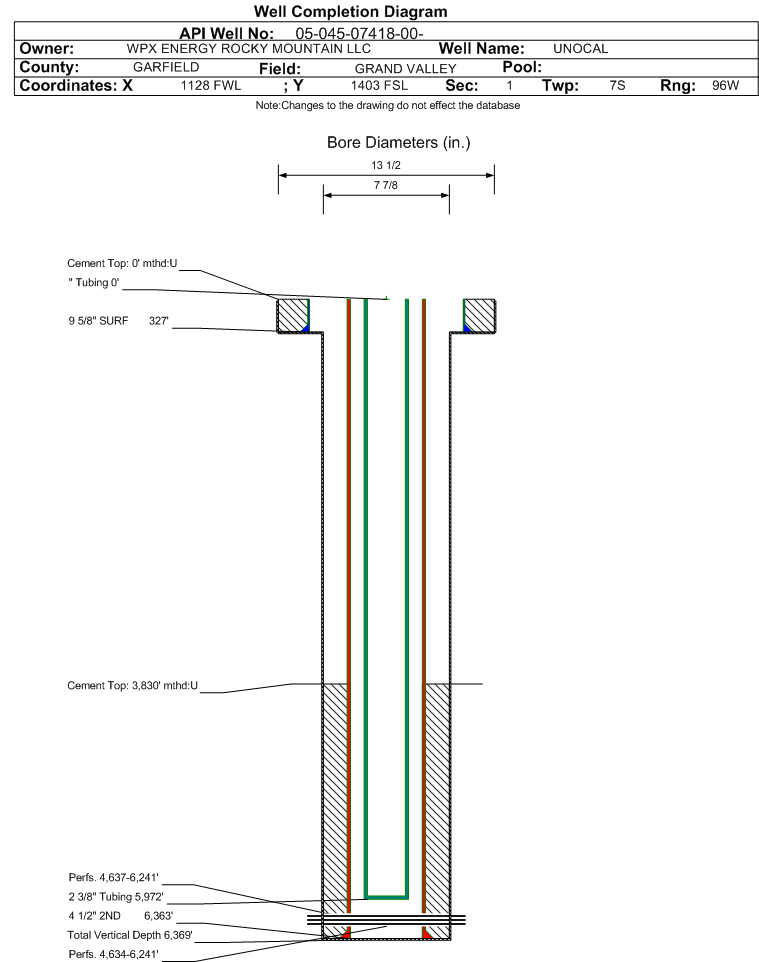

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07418		Well Classification: GW Status: PR - 9/1/2017
Well Name/No:UNOCAL #GM 14-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/1/2017
FacilityID:256401LocationID:334925
County:GARFIELD #045Location:NWSW 1 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5229 ft.
Basin:PICEANCE BASIN
Planned Location:1403FSL  1128 FWLLat/Long: 39.463449 / -108.063635Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.463513 / -108.063847Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/1/2017             Measured TD: 6373 ft.    Vertical TD: 6369 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/1/2017
Wellbore Permit
Permit #:990578 Expiration Date:8/19/2000
Proposed Depth/Form:6428 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 510-3 , Unit Acreage: 320, Drill Unit: S2
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6425 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:11/2/1999
Spud Date:9/19/1999Spud Date Is:ACTUAL
Measured TD:6373 ft.Measured PB depth:
True Vertical TD:6369 ft.True Vertical PB depth:
Log Types:DISDDSN
Log Types:DUAL INDUCITON SPECTRAL DENSITY DUAL SPACED NEUTRON
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 327 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 190, Top: , Bottom: 326 ft., Determination Method:
Casing:String Type: 2ND, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6363 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1120, Top: 3830 ft., Bottom: 6363 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1482 ft.NN
FORT UNION1848 ft.NN
MESAVERDE3341 ft.NN
CAMEO COAL5830 ft.NN
ROLLINS6293 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 9/1/2017                  Interval Top: 4637 ft.    Interval Bottom: 6241 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:11/2/1999Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/2/1999
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5972 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/4/1999Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 20
CALC_BBLS_H2O 20
CALC_MCF_GAS 1464
CASING_PRESS 2014
MCF_GAS 1464
TUBING_PRESS 1967
Perforation Data:
Interval Top:4637 ft.# Of Holes:48
Interval Bottom:6241 ft.Hole Size:

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 8/20/1999                 Interval Top: 4634 ft.    Interval Bottom: 6241 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/2/1999
Treatment Summary:A) 5871-6241 1000 GAL 7 1/2% HCL, 352000# 20/40 2541 BBL GEL, B) 5156-5550 750 GAL 7 1/2% HCL 501480# 20/40 3601 BBL GEL, C) 750 GAL 7 1/2% HCL 351000# 20/40 2544 BBL GEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/4/1999Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 20
MCF_GAS 1464
Perforation Data:
Interval Top:4634 ft.# Of Holes:48
Interval Bottom:6241 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)4
Total Gas Produced (MCF)4332
GOR1083000
GOR DeterminationMCFE
Average BOE per Day2.058
Average MCFE per Day11.934

 Federal Financial Assurance  i

 Tribal Well  i No
