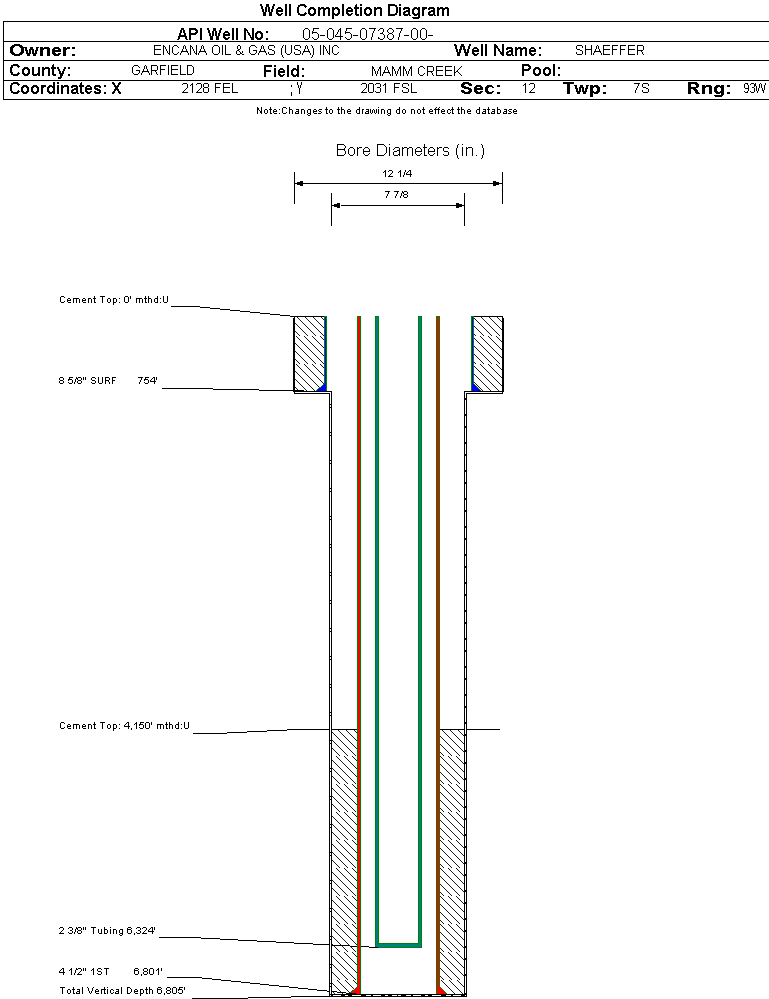

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07387		Well Classification: GW Status: PR - 2/1/2019
Well Name/No:Shaeffer #12-10 (J12W)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/1/2019
FacilityID:89057LocationID:421020
County:GARFIELD #045Location:NWSE 12 7S93W 6
Field:MAMM CREEK - #52500Elevation:6259 ft.
Basin:PICEANCE BASIN
Planned Location:2031FSL  2128 FELLat/Long: 39.458691 / -107.721974Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.458870 / -107.721920Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/1/2019             Measured TD: 6805 ft.    Vertical TD: 6805 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/1/2019
Wellbore Permit
Permit #:990378 Expiration Date:6/6/2000
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: 52678, Drill Unit: U
Wellbore Completed
Completion Date:1/21/2000
Spud Date:10/10/1999Spud Date Is:ACTUAL
Measured TD:6805 ft.Measured PB depth:
True Vertical TD:6805 ft.True Vertical PB depth:6751 ft.
Log Types:AI,GR,CN/LD
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 754 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 381, Top: 0 ft., Bottom: 754 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6801 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1060, Top: 4150 ft., Bottom: 6801 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH3023 ft.3700 ft.NN
OHIO CREEK3700 ft.4339 ft.NN
WILLIAMS FORK4339 ft.4889 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 2/1/2019                  Interval Top: 4339 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:12/4/1999Choke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:1/21/2000
Treatment Summary:STAGE 1: PERFS 6330-6611' ACID BREAKDOWN ; 1500 GALS OF 7.5% HCI W/ADDITIVES & 60 BIO BALL SEALERS. FRAC : W/1440 BBLS OF VISTAR 16 FLUID & 150, 775 LBS OF 20/40 WHITE SAND . TAILED W/7,500 LBS 14/40 FLEX SAND . STAGE 2: PERFS 5609'-6077' FRAC : W/2023
Tubing Size:2.375 in.Tubing Setting Depth:6324 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/31/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 2
CALC_BBLS_H2O 5
CALC_BBLS_OIL 2
CALC_GOR 25550
CALC_MCF_GAS 511
CASING_PRESS 350
MCF_GAS 511
TUBING_PRESS 280
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)13
Total Gas Produced (MCF)6042
GOR464769
GOR DeterminationMCFE
Average BOE per Day2.889
Average MCFE per Day16.739

 Federal Financial Assurance  i Y

 Tribal Well  i No
