Wellbore #00 Wellbore Classification: GW Status: PR - 6/1/2019 Measured TD: 7261 ft. Vertical TD: 7056 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/1/2019 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 990375 | Expiration Date: | 6/6/2000 | | Proposed Depth/Form: | | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: 52678, Drill Unit: U |
| | |

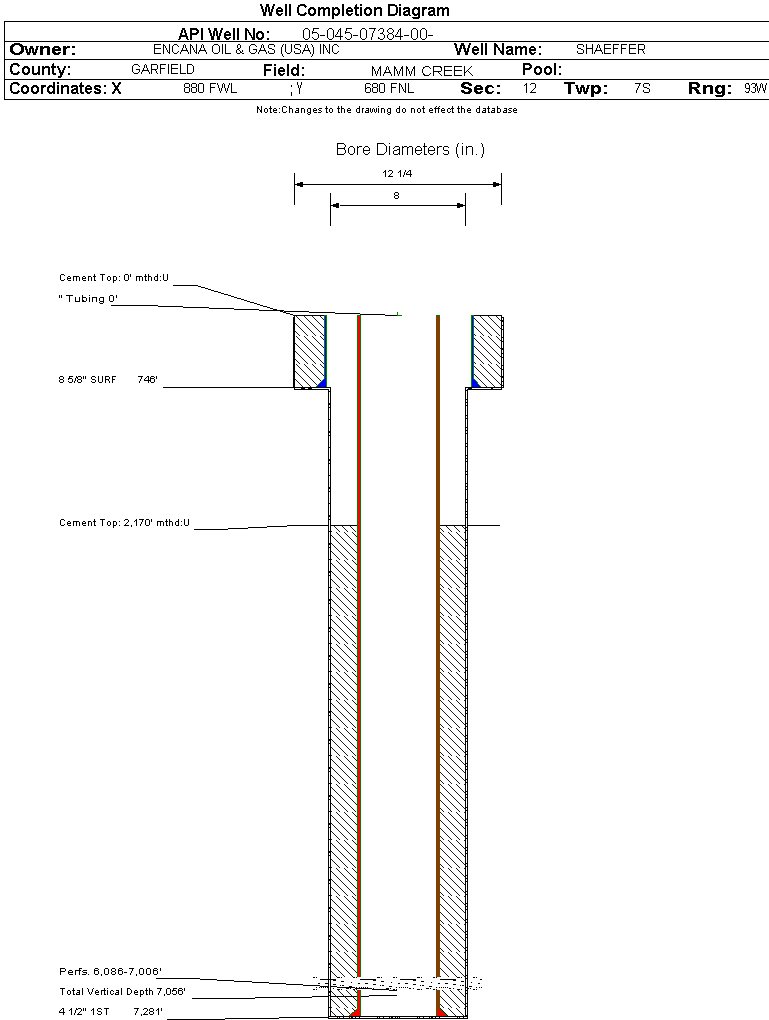

| Wellbore Completed | | Completion Date: | 11/7/1999 | | Spud Date: | 10/15/1999 | Spud Date Is: | ACTUAL | | Measured TD: | 7261 ft. | Measured PB depth: | 7207 ft. | | True Vertical TD: | 7056 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 480 FSL 691 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 650 FSL 668 FWL | | Log Types: | CBL,CN/LD/GR, AI/GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 746 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 395, Top: 0 ft., Bottom: 746 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8 in., Size: 4.5 in., Top: 0 ft., Depth: 7281 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 905, Top: 2170 ft., Bottom: 7281 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 3456 ft. | 4278 ft. | N | N | | OHIO CREEK | 4278 ft. | 4980 ft. | N | N | | WILLIAMS FORK | 4980 ft. | 5500 ft. | N | N | | J SAND | 5500 ft. | 5784 ft. | N | N | | COAL | 7253 ft. | | N | N |
Formation MVRD Formation Classification: GW Status: CM - 3/30/2000 Interval Top: 6086 ft. Interval Bottom: 7006 ft.| Completed Information for Formation MESAVERDE | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | MESAVERDE | Commingled: | Yes | | Production Method: | FLOWING | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 11/7/1999 | | Treatment Summary: | STAGE 1; ACID BREAKDOWN PERFS 6587'-7006' W/36 BBLS OF 7 1/2% ACID W/78 BIO BALL SEALERS.;STAGE 1 FRAC PERF 6587-7006' 126,626 LBS OF 20/40 WHITE SAND & 1250 BBLS VISTAR 16 FLUID.;STAGE 2 ACID BREAKDOWN PERFS 6086-6460' W/1500 BBLS OF 7 1/2% HCI W/52 1.1 |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/2/2000 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 3 | | BBLS_OIL | 2 | | MCF_GAS | 311 |
| | Perforation Data: | | Interval Top: | 6086 ft. | # Of Holes: | 52 | | Interval Bottom: | 7006 ft. | Hole Size: | 0.32 in. |
|
Formation WMFK Formation Classification: GW Status: PR - 6/1/2019 Interval Top: 4980 ft. Interval Bottom: 7006 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 11/12/1999 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WMFK. |
| | No Perforation Data was found for formation WMFK. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 9 |
| Total Gas Produced (MCF) | 4577 |
| GOR | 508555 |
| GOR Determination | MCFE |
| Average BOE per Day | 2.188 |
| Average MCFE per Day | 12.692 |
| Federal Financial Assurance | i | Y |
|
|
