COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07372		Well Classification: GW Status: PR - 10/4/1999
Well Name/No:UNOCAL #GM 43-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/4/1999
FacilityID:89044LocationID:334760
County:GARFIELD #045Location:NESE 1 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5231 ft.
Basin:PICEANCE BASIN
Planned Location:1572FSL  358 FELLat/Long: 39.464081 / -108.050559Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.464065 / -108.050566Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/4/1999             Measured TD: 6513 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/4/1999
Wellbore Permit
Permit #:990275 Expiration Date:5/4/2000
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 139-32 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:9/28/1999
Spud Date:7/31/1999Spud Date Is:ACTUAL
Measured TD:6513 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON

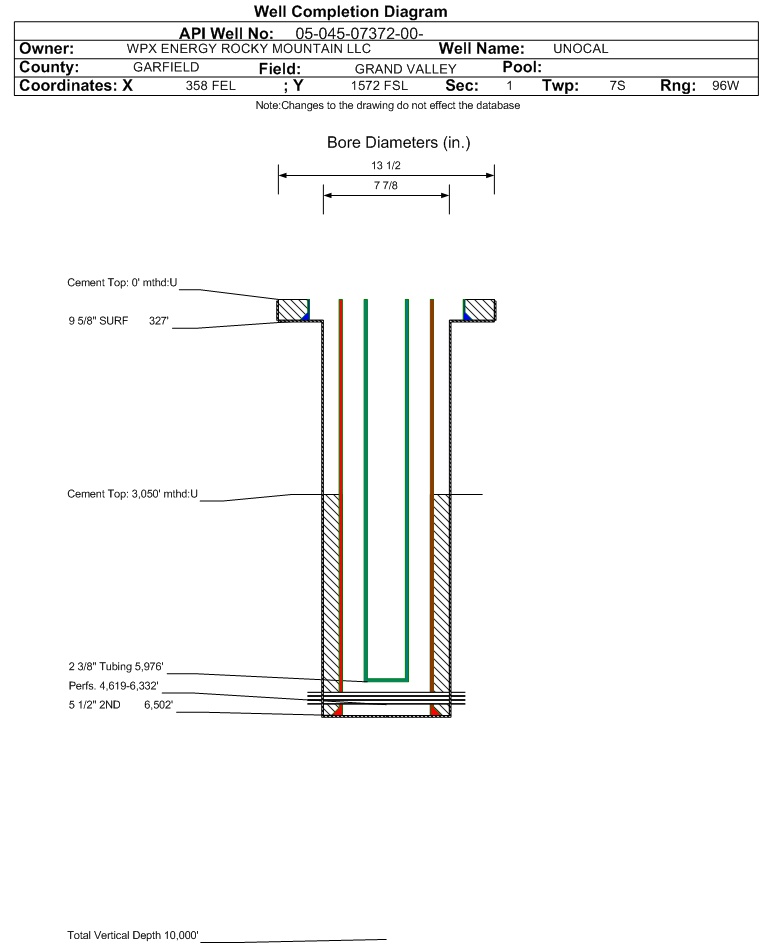

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 327 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 327 ft., Determination Method: CALC
Casing:String Type: 2ND, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 6502 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 805, Top: 3050 ft., Bottom: 6501 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1511 ft.NN
FORT UNION1957 ft.NN
MESAVERDE3397 ft.NN
CAMEO COAL5902 ft.NN
ROLLINS6410 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/4/1999                 Interval Top: 4619 ft.    Interval Bottom: 6332 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:9/28/1999Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:9/28/1999
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5976 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/30/1999Test Method:
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_BBLS_H2O 35
CALC_MCF_GAS 1522
CASING_PRESS 1613
TUBING_PRESS 1497
Perforation Data:
Interval Top:4619 ft.# Of Holes:74
Interval Bottom:6332 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)10733
GOR894416
GOR DeterminationMCFE
Average BOE per Day5.102
Average MCFE per Day29.606

 Federal Financial Assurance  i

 Tribal Well  i No
