COGIS

Facility Detail

COGIS - WELL SCOUT CARD

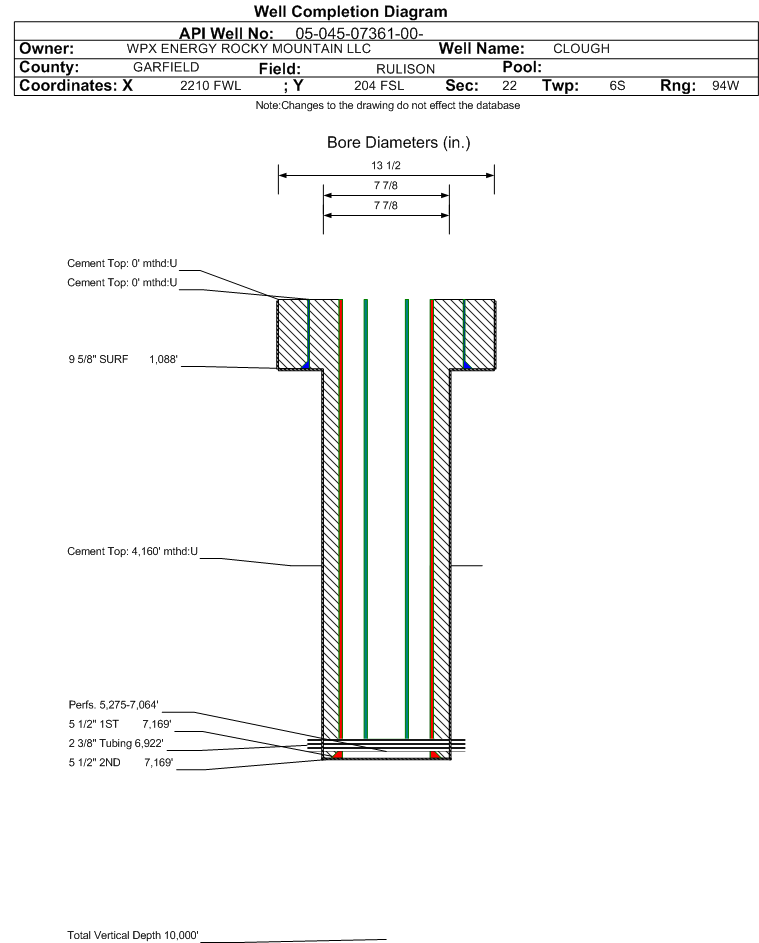

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07361		Well Classification: GW Status: PR - 2/18/2000
Well Name/No:CLOUGH #RMV 223-22
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/18/2000
FacilityID:211600LocationID:324058
County:GARFIELD #045Location:SESW 22 6S94W 6
Field:RULISON - #75400Elevation:5216 ft.
Basin:PICEANCE BASIN
Planned Location:204FSL  2210 FWLLat/Long: 39.503939 / -107.875970Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.504069 / -107.876087Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/18/2000             Measured TD: 7175 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/18/2000
Wellbore Permit
Permit #:990033 Expiration Date:1/21/2000
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 139-33 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:N/A
Spud Date:3/8/1999Spud Date Is:ACTUAL
Measured TD:7175 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DISD/DSN
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1088 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: 0 ft., Bottom: , Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7169 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 1190, Top: 4160 ft., Bottom: 7169 ft., Determination Method:
Casing:String Type: 2ND, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 7169 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1190, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1420 ft.NN
MESAVERDE3855 ft.NN
CAMEO COAL6624 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 2/18/2000                 Interval Top: 5275 ft.    Interval Bottom: 7064 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/16/1999
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6922 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/16/1999Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 2
CALC_BBLS_H2O 10
CALC_BBLS_OIL 2
CALC_GOR 749500
CALC_MCF_GAS 1499
CASING_PRESS 2313
MCF_GAS 1499
TUBING_PRESS 2222
Perforation Data:
Interval Top:5275 ft.# Of Holes:60
Interval Bottom:7064 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)14
Total Gas Produced (MCF)12107
GOR864785
GOR DeterminationMCFE
Average BOE per Day5.760
Average MCFE per Day33.420

 Federal Financial Assurance  i

 Tribal Well  i No
