COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07353		Well Classification: OW Status: PA - 7/23/2021
Well Name/No:SHIDELER #19-15
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/23/2021
FacilityID:211592LocationID:334790
County:GARFIELD #045Location:SWSE 19 7S92W 6
Field:MAMM CREEK - #52500Elevation:6540 ft.
Basin:PICEANCE BASIN
Planned Location:658FSL  1954 FELLat/Long: 39.426221 / -107.706204Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.426294 / -107.706227Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 7/23/2021             Measured TD: 6476 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 7/23/2021
Wellbore Permit
Permit #:990017 Expiration Date:1/10/2000
Proposed Depth/Form:6800 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 0 , Unit Acreage: 0, Drill Unit: U
Wellbore Completed
Completion Date:4/15/1999
Spud Date:1/21/1999Spud Date Is:ACTUAL
Measured TD:6476 ft.Measured PB depth:6418 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:CBL,ARRAY IND. 1,2,4,GAMMA RAY;PLATFORM EXP. LOQ QUAL, CONTROL;PLATFORM EXP. ANSWER PROD. QUICKLOOK.

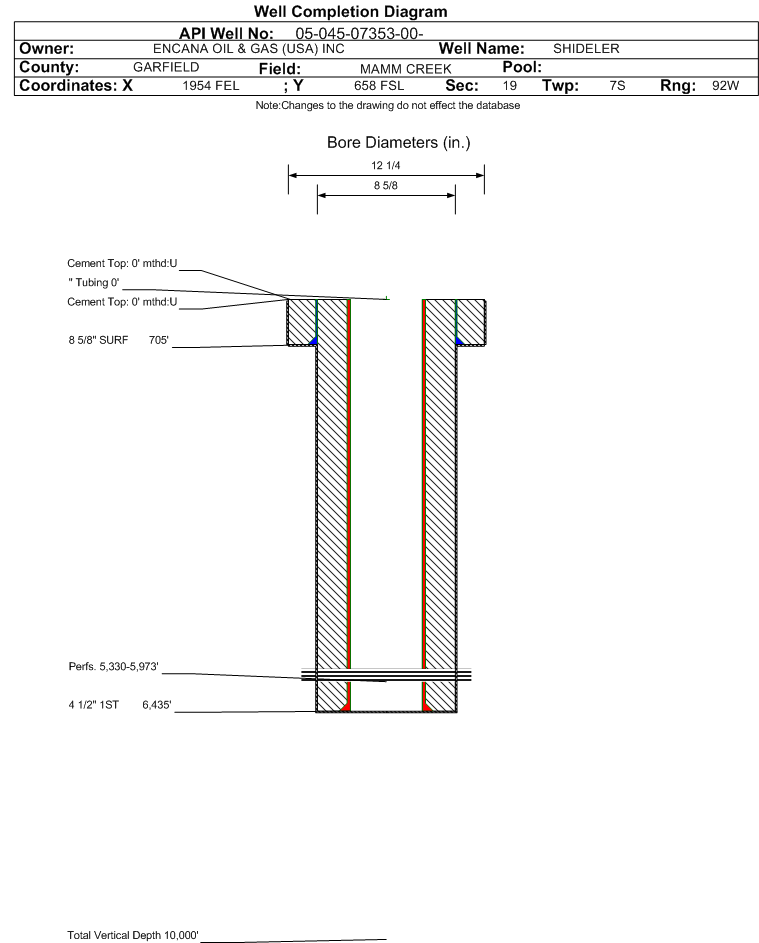

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 705 ft., Weight: 24# , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 0 ft., Bottom: 705 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 8.625 in., Size: 4.5 in., Top: 0 ft., Depth: 6435 ft., Weight: 11.6# , Citings Type: ACTUAL
Cement:Sacks: 1150, Top: 3280 ft., Bottom: 6435 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH2897 ft.
OHIO CREEK3826 ft.
WILLIAMS FORK4383 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  AB - 7/23/2021                 Interval Top: 5330 ft.    Interval Bottom: 5973 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:6/1/2004Choke Size:0.313 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/15/1999
Treatment Summary:STAGES 1 THROUGH 3 WERE TREATED W/TOTAL OF 1112 BBL SLICKWATER & 117420# OF 20-40 SAND.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/22/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 189
BBLS_OIL 2
BTU_GAS 1170
CALC_BBLS_H2O 189
CALC_BBLS_OIL 2
CALC_GOR 127
CALC_MCF_GAS 307
CASING_PRESS 750
MCF_GAS 307
TUBING_PRESS 750
Perforation Data:
Interval Top:5330 ft.# Of Holes:132
Interval Bottom:5973 ft.Hole Size:0.32 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/23/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
