Facility Detail

COGIS - WELL SCOUT CARD

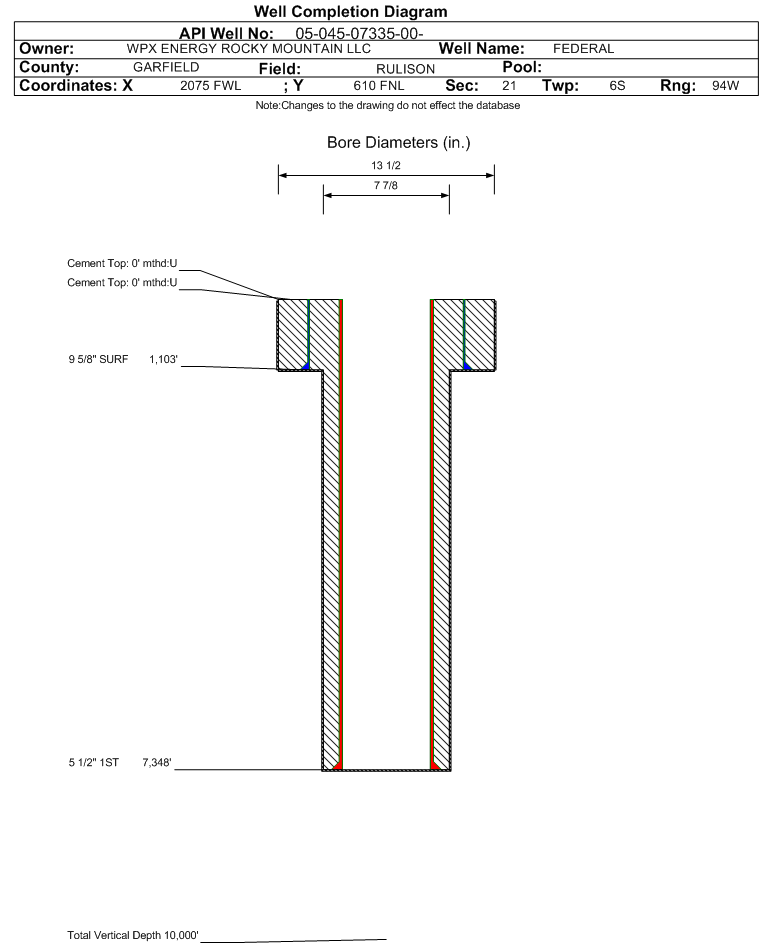

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07335		Well Classification: GW Status: PR - 12/20/1998
Well Name/No:FEDERAL #RMV #30-21
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/20/1998
FacilityID:211575LocationID:324050
County:GARFIELD #045Location:NENW 21 6S94W 6
Field:RULISON - #75400Elevation:5455 ft.
Basin:PICEANCE BASIN
Planned Location:610FNL  2075 FWLLat/Long: 39.516369 / -107.895480Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.516485 / -107.895535Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/20/1998             Measured TD: 7450 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/20/1998
Wellbore Permit
Permit #:980919 Expiration Date:10/14/1999
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:CR160
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 139-28 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:N/A
Measured TD:7450 ft.Measured PB depth:7348 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1103 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 550, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7348 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
MESAVERDE4255 ft.
CAMEO COAL7037 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/20/1998

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)24
Total Gas Produced (MCF)17041
GOR710041
GOR DeterminationMCFE
Average BOE per Day8.120
Average MCFE per Day47.091

 Federal Financial Assurance  i Y

 Tribal Well  i No
