COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07328		Well Classification: GW Status: PR - 6/13/2002
Well Name/No:WEBSTER/HEATH #RMV 236-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/13/2002
FacilityID:211568LocationID:324046
County:GARFIELD #045Location:NESE 28 6s94w 6
Field:RULISON - #75400Elevation:5376 ft.
Basin:PICEANCE BASIN
Planned Location:1744FSL  984 FELLat/Long: 39.493819 / -107.887010Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.493827 / -107.887084Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/13/2002             Measured TD: 7443 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/13/2002
Wellbore Permit
Permit #:011080 Expiration Date:6/3/2002
Proposed Depth/Form:7250 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-33 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:6/12/2002
Spud Date:4/24/2002Spud Date Is:ACTUAL
Measured TD:7443 ft.Measured PB depth:7397 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL - GR - SP NEUTRON DENSITY & CBL

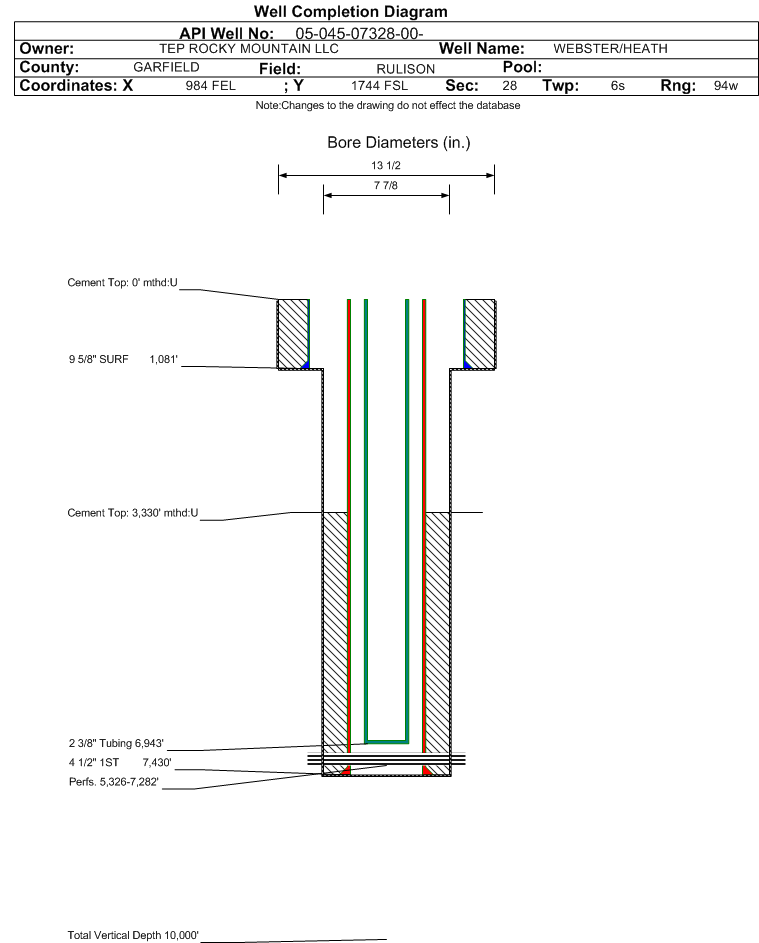

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1081 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 535, Top: , Bottom: 1081 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7430 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1075, Top: 3330 ft., Bottom: 7430 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1543 ft.NN
MESAVERDE3973 ft.NN
CAMEO6713 ft.NN
ROLLINS7628 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 6/13/2002                 Interval Top: 5326 ft.    Interval Bottom: 7282 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/12/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6943 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/13/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1074
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 2000
CASING_PRESS 2100
MCF_GAS 2000
TUBING_PRESS 2100
Perforation Data:
Interval Top:5326 ft.# Of Holes:96
Interval Bottom:7282 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)8331
GOR757363
GOR DeterminationMCFE
Average BOE per Day3.966
Average MCFE per Day23.016

 Federal Financial Assurance  i

 Tribal Well  i No
