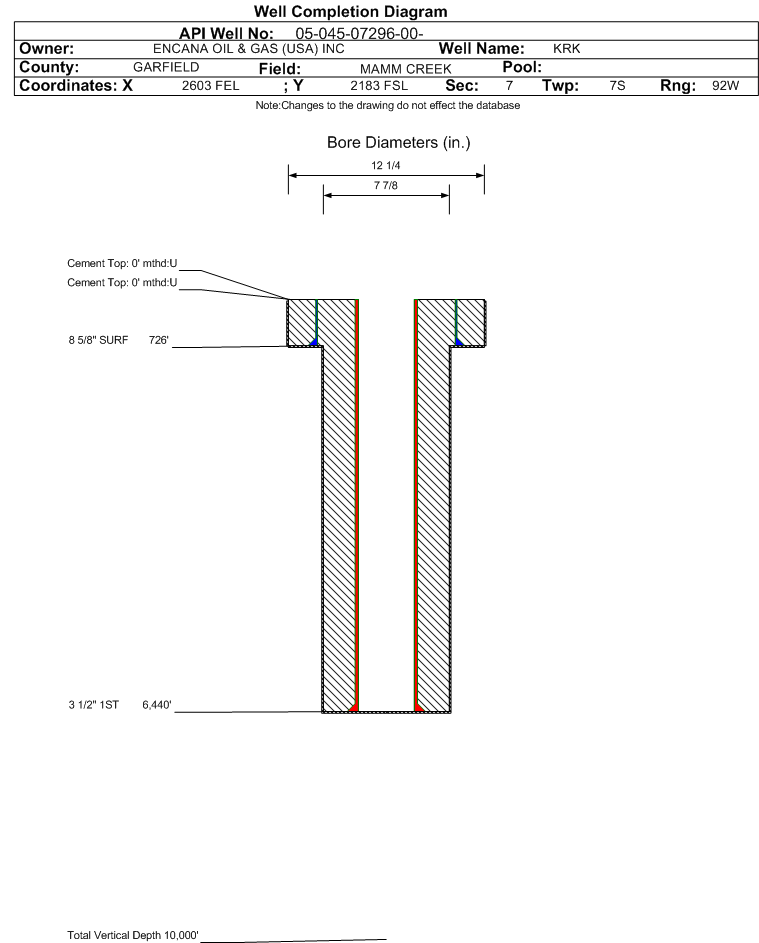

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07296		Well Classification: GW Status: PR - 5/28/1998
Well Name/No:KRK #7-10B (J7E)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13299
Facility Status:PRStatus Date5/28/1998
FacilityID:211536LocationID:324031
County:GARFIELD #045Location:NWSE 7 7S92W 6
Field:MAMM CREEK - #52500Elevation:6130 ft.
Basin:PICEANCE BASIN
Planned Location:2183FSL  2603 FELLat/Long: 39.459401 / -107.708574Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.459570 / -107.708430Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/28/1998             Measured TD: 6426 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/28/1998
Wellbore Permit
Permit #:980267 Expiration Date:3/16/1999
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 0 , Unit Acreage: 0, Drill Unit: U
Wellbore Completed
Completion Date:5/22/1998
Measured TD:6426 ft.Measured PB depth:6395 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 726 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 500, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 3.5 in., Top: 0 ft., Depth: 6440 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
MESAVERDE3290 ft.
WILLIAMS FORK3290 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 5/28/1998                 Interval Top: 3290 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:4/24/1998Choke Size:0.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)2
Total Gas Produced (MCF)5357
GOR2678500
GOR DeterminationMCFE
Average BOE per Day2.529
Average MCFE per Day14.677

 Federal Financial Assurance  i Y

 Tribal Well  i No
