COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07279		Well Classification: GW Status: PR - 7/16/2009
Well Name/No:GIBSON GULCH UNIT #6-31 C
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/16/2009
FacilityID:211519LocationID:334881
County:GARFIELD #045Location:SENW 31 6S91W 6
Field:MAMM CREEK - #52500Elevation:5990 ft.
Basin:PICEANCE BASIN
Planned Location:2322FNL  1639 FWLLat/Long: 39.484791 / -107.600061Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.484856 / -107.600039Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/16/2009             Measured TD: 5437 ft.    Vertical TD: 5434 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/16/2009
Wellbore Permit
Permit #:000928 Expiration Date:9/7/2001
Proposed Depth/Form:5400 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:1/5/2001
Spud Date:12/26/2000Spud Date Is:ACTUAL
Measured TD:5437 ft.Measured PB depth:5399 ft.
True Vertical TD:5434 ft.True Vertical PB depth:5399 ft.
Log Types:DIL / SDL / DSN, CBL-GR
Log Types:DIL / SDL / DSN

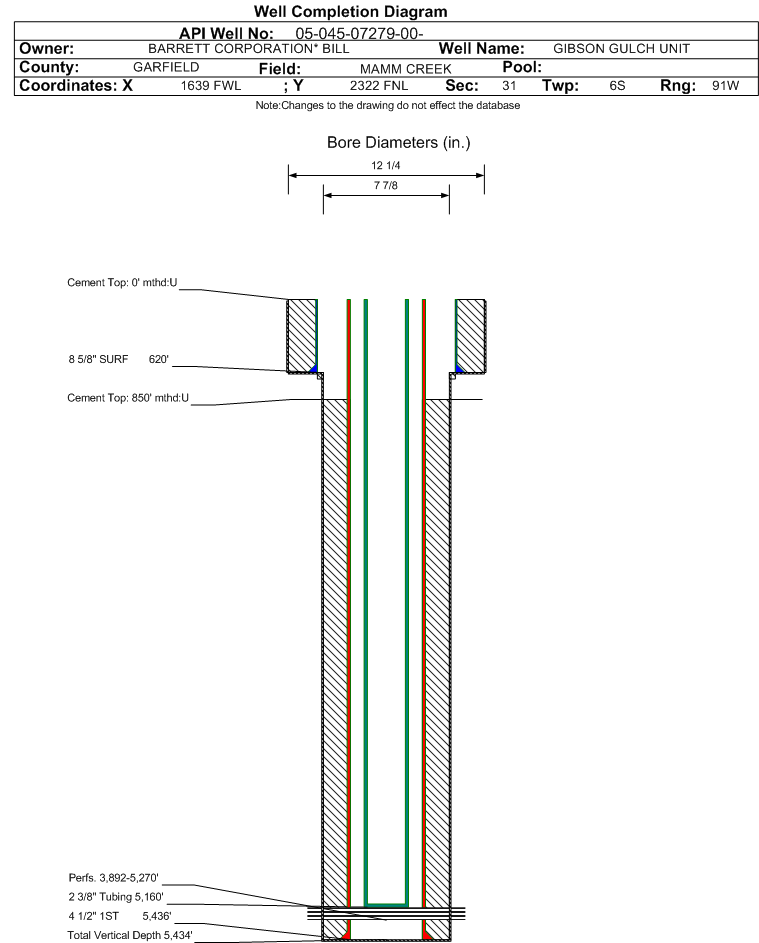

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 620 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 675 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5436 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 820, Top: 850 ft., Bottom: 5436 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3339 ft.NN
OGALLALA3339 ft.3836 ft.NN
OHIO CREEK3339 ft.3836 ft.NN
WILLIAMS FORK3836 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 7/16/2009                 Interval Top: 3892 ft.    Interval Bottom: 5270 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.313 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:THROUGH TUBING
Open Hole Completion:No
Formation Treatment
Treatment Date:1/5/2001
Treatment Summary:5035-5270 FRACED WITH 311600# 20/40 SAND+2017 BBLS.2% KCL WATER. 4440-4896 FRACED WITH 520000# 20/40 SAND+3927 BBLS. 2% KCL WATER. 3892-4214 FRACED WITH 308000# 20/40 SAND+2408 BBLS. 2% KCL WATER.
Tubing Size:2.375 in.Tubing Setting Depth:5160 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/18/2001Test Method:TO PIPELINE
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 5
BTU_GAS 1160
CALC_BBLS_H2O 10
CALC_BBLS_OIL 5
CALC_GOR 270000
CALC_MCF_GAS 1350
CASING_PRESS 1710
GRAVITY_OIL 45
MCF_GAS 1350
TUBING_PRESS 1405
Perforation Data:
Interval Top:3892 ft.# Of Holes:18
Interval Bottom:5270 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
02/2025 - 01/2026

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)3
Total Gas Produced (MCF)1008
GOR336000
GOR DeterminationMCFE
Average BOE per Day0.482
Average MCFE per Day2.811

 Federal Financial Assurance  i

 Tribal Well  i No
