Wellbore #00 Wellbore Classification: GW Status: PR - 2/1/2010 Measured TD: 6795 ft. Vertical TD: 6794 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/1/2010 | | Wellbore Permit | | | Permit #: | 980058 | Expiration Date: | 1/25/1999 | | Proposed Depth/Form: | | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 139-28 , Unit Acreage: 320, Drill Unit: N2 | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-28 , Unit Acreage: 320, Drill Unit: N2 |
| | |

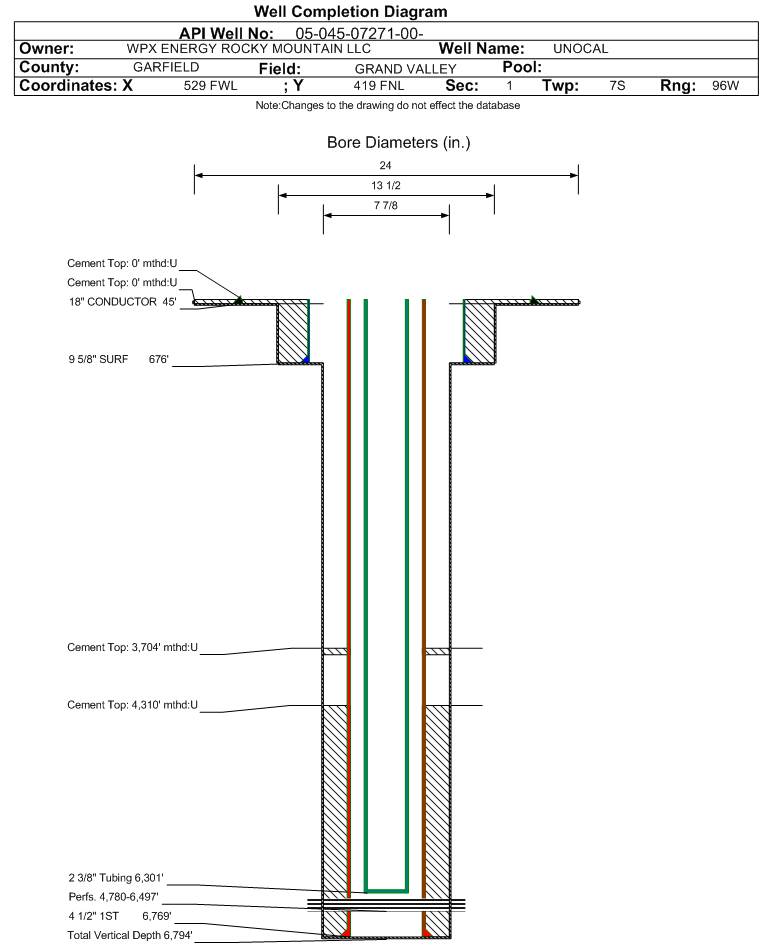

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 4/8/1998 | Spud Date Is: | ACTUAL | | Measured TD: | 6795 ft. | Measured PB depth: | 6722 ft. | | True Vertical TD: | 6794 ft. | True Vertical PB depth: | | | Log Types: | | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 676 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 676 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6769 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1300, Top: 4310 ft., Bottom: 6768 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 3772 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: 3704 ft., Bottom: 3772 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1808 ft. | | N | N | | FORT UNION | 2232 ft. | | | | | MESAVERDE | 3702 ft. | | N | N | | CAMEO | 6215 ft. | | N | N | | CAMEO COAL | 6215 ft. | | | | | ROLLINS | 6710 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 2/1/2010 Interval Top: 4780 ft. Interval Bottom: 6497 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/1/2010 | | Treatment Summary: | 4332 GALS 7 1/2 % HCL; 1795000# 20/40 SAND; 9155 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6301 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/1/2010 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1053 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CASING_PRESS | 102 | | MCF_GAS | 648 | | TUBING_PRESS | 103 |
| | Perforation Data: | | Interval Top: | 4780 ft. | # Of Holes: | 82 | | Interval Bottom: | 6497 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
12/2024 - 11/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 2361 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 1.118 |
| Average MCFE per Day | 6.468 |
