COGIS - WELL SCOUT CARD

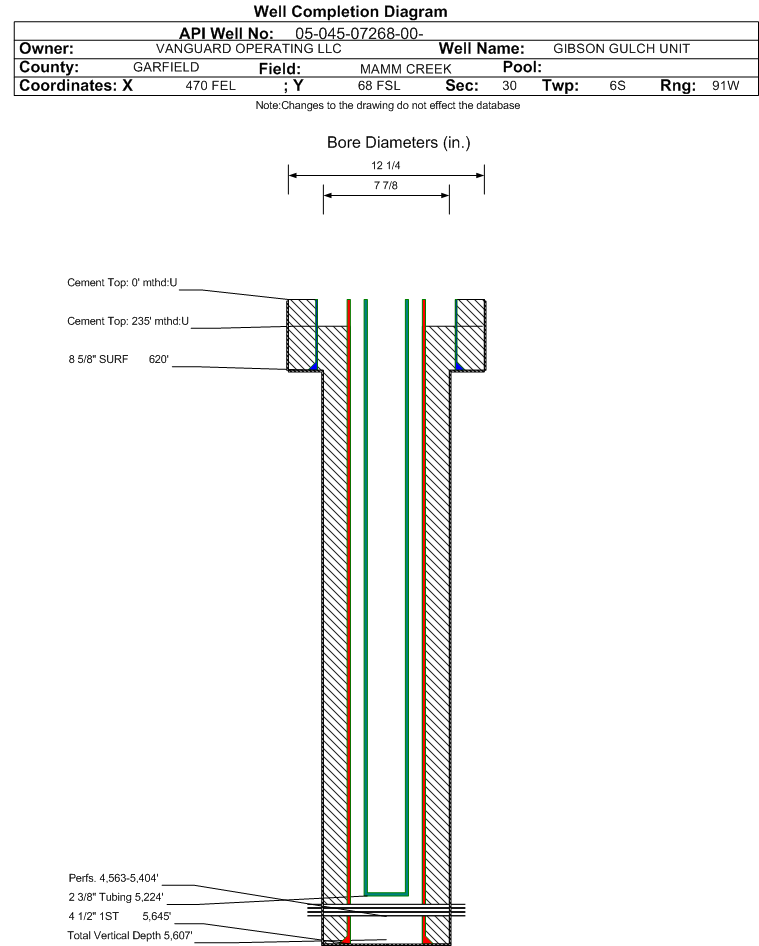

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07268		Well Classification: GW Status: PR - 9/1/2004
Well Name/No:GIBSON GULCH UNIT #1-31 B
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/1/2004
FacilityID:211508LocationID:324020
County:GARFIELD #045Location:SESE 30 6S91W 6
Field:MAMM CREEK - #52500Elevation:5933 ft.
Basin:PICEANCE BASIN
Planned Location:68FSL  470 FELLat/Long: 39.491431 / -107.588941Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.491600 / -107.588750Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/1/2004             Measured TD: 5645 ft.    Vertical TD: 5607 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/1/2004
Wellbore PermitDIRECTIONAL
Permit #:000925 Expiration Date:9/6/2001
Proposed Top PZ Location:Sec:31 Twp: 6S 91W Footage: 10 FNL  930 FEL
Bottom Hole Location:Sec:31 Twp: 6S 91W Footage: 10 FNL  930 FEL
Proposed Depth/Form:5500 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:11/13/2000
Spud Date:10/31/2000Spud Date Is:ACTUAL
Measured TD:5645 ft.Measured PB depth:5606 ft.
True Vertical TD:5607 ft.True Vertical PB depth:5567 ft.
Top PZ Location:Sec: Twp: Footage: 9 FNL  945 FEL
Bottom Hole Location:Sec: Twp: Footage: 13 FSL  965 FEL
Log Types:GR / SP / CNL / FDC / DIL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 620 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: , Bottom: 620 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5645 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1220, Top: 235 ft., Bottom: 5645 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
OHIO CREEK3243 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 9/1/2004                  Interval Top: 4563 ft.    Interval Bottom: 5404 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.188 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/13/2000
Treatment Summary:4563-4930 FRACED W/131900 GALS DELTA FRAC + 371000# 20/40 SNAD;5027-5404 FRACED WITH 72200 GALS DELTA FRAC+ 227550 #20/40 SAND+33850 SCF N2.
Tubing Size:2.375 in.Tubing Setting Depth:5224 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/13/2001Test Method:SALES
Hours Tested:24Gas Type:DRY
Gas Disposal:
Test TypeMeasure
BBLS_OIL 13
BTU_GAS 1260
CALC_GOR 126000
CASING_PRESS 780
GRAVITY_OIL 10
MCF_GAS 1260
TUBING_PRESS 570
Perforation Data:
Interval Top:4563 ft.# Of Holes:38
Interval Bottom:5404 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)6
Total Gas Produced (MCF)3832
GOR638666
GOR DeterminationMCFE
Average BOE per Day1.825
Average MCFE per Day10.602

 Federal Financial Assurance  i

 Tribal Well  i No
