COGIS - WELL SCOUT CARD

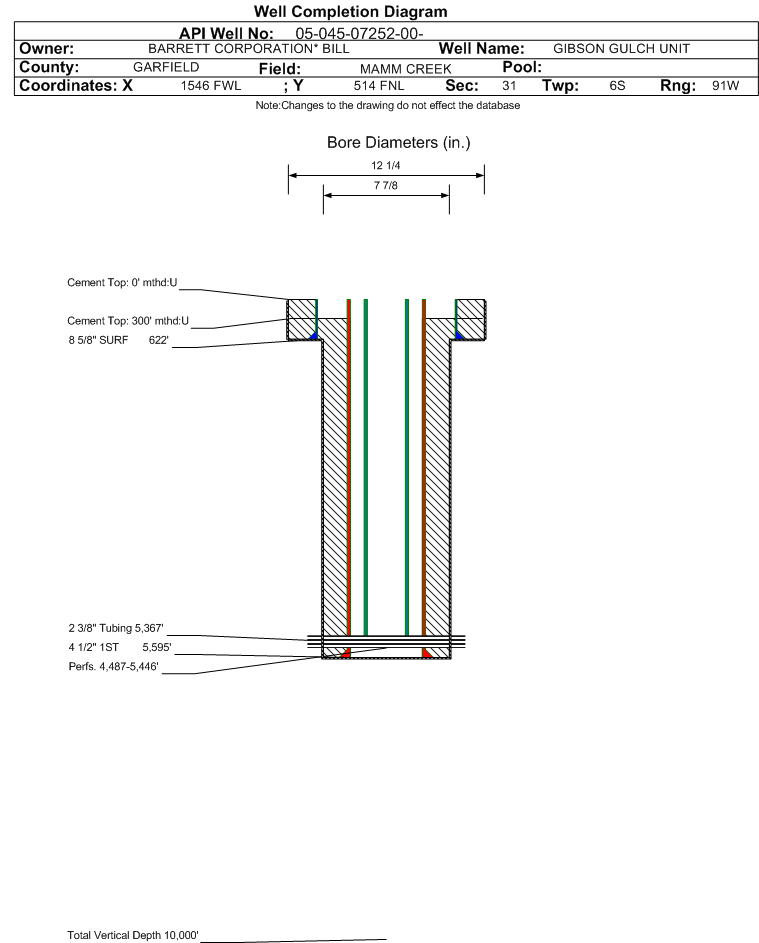

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07252		Well Classification: GW Status: PR - 8/8/2000
Well Name/No:GIBSON GULCH UNIT #3-31 B
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/8/2000
FacilityID:211492LocationID:311685
County:GARFIELD #045Location:NENW 31 6S91W 6
Field:MAMM CREEK - #52500Elevation:5888 ft.
Basin:PICEANCE BASIN
Planned Location:514FNL  1546 FWLLat/Long: 39.489751 / -107.600531Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.490002 / -107.600224Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/8/2000             Measured TD: 5595 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/8/2000
Wellbore Permit
Permit #:000924 Expiration Date:9/6/2001
Proposed Depth/Form:5500 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:10/30/2000
Spud Date:10/17/2000Spud Date Is:ACTUAL
Measured TD:5595 ft.Measured PB depth:5550 ft.
True Vertical TD:True Vertical PB depth:
Log Types:GR/SP/CNL/FDC/DIL,CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 622 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 622 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5595 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1050, Top: 300 ft., Bottom: 5595 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.NN
OHIO CREEK3193 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 7/16/2009                 Interval Top: 4487 ft.    Interval Bottom: 5446 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.297 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/30/2000
Treatment Summary:4487-4760 FRAC'D W/2113BBL 2% KCL+DELTA FRAC+21700# 20/40 SD. 4922-5200 FRAC'S W/2701BBL 2% KCL+DELTA FRAC+266000# 20/40 SD.52805446 FRAC'S W/1880BBL 2% KCL+DELTA FRAC+178500# 20/40 SD+278000SCF N2.
Tubing Size:2.375 in.Tubing Setting Depth:5367 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/10/2001Test Method:FLOWING
Hours Tested:15Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 53
BBLS_OIL 0
BTU_GAS 112
CALC_BBLS_H2O 53
CALC_BBLS_OIL 0
CALC_MCF_GAS 1567
CASING_PRESS 1222
MCF_GAS 1222
TUBING_PRESS 1040
Perforation Data:
Interval Top:4487 ft.# Of Holes:54
Interval Bottom:5446 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)1
Total Gas Produced (MCF)2581
GOR2581000
GOR DeterminationMCFE
Average BOE per Day1.224
Average MCFE per Day7.085

 Federal Financial Assurance  i

 Tribal Well  i No
