COGIS - WELL SCOUT CARD

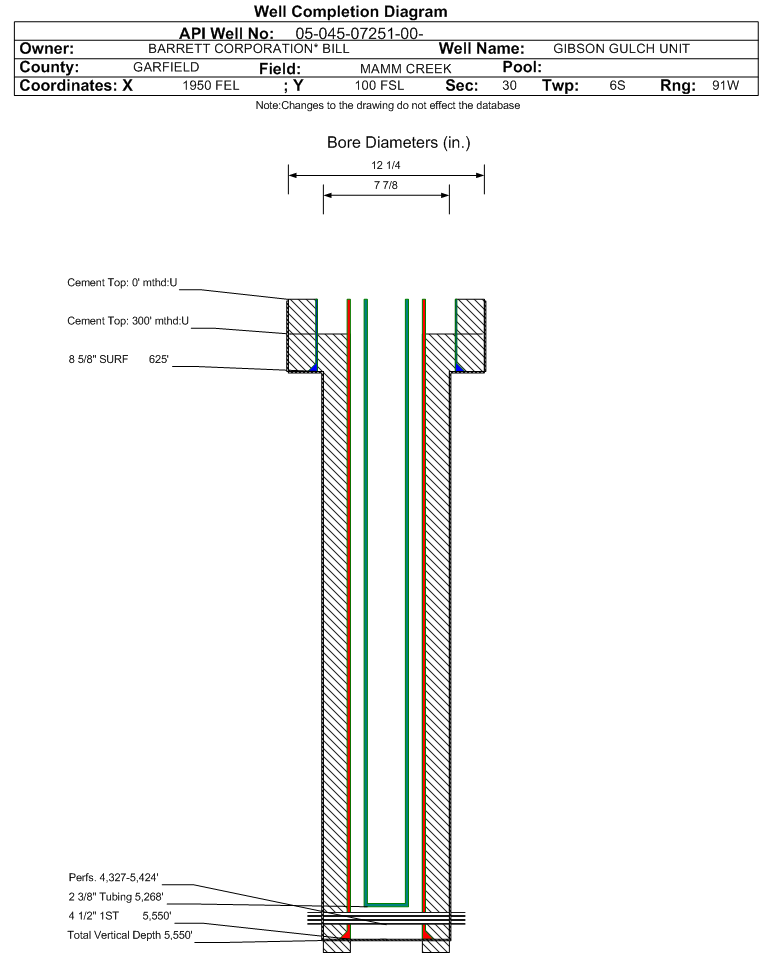

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07251		Well Classification: GW Status: PR - 8/8/2000
Well Name/No:GIBSON GULCH UNIT #15-30 D
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/8/2000
FacilityID:211491LocationID:324014
County:GARFIELD #045Location:SWSE 30 6S91W 6
Field:MAMM CREEK - #52500Elevation:5895 ft.
Basin:PICEANCE BASIN
Planned Location:100FSL  1950 FELLat/Long: 39.491481 / -107.594191Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.491683 / -107.594136Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/8/2000             Measured TD: 5550 ft.    Vertical TD: 5550 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/8/2000
Wellbore Permit
Permit #:000876 Expiration Date:8/22/2001
Proposed Depth/Form:5400 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:10/15/2000
Spud Date:10/4/2000Spud Date Is:ACTUAL
Measured TD:5550 ft.Measured PB depth:5505 ft.
True Vertical TD:5550 ft.True Vertical PB depth:5505 ft.
Log Types:GR/SP/CNL/FMI CBL-GR-CCL MUD LOG
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 625 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 625 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 5550 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1250, Top: 300 ft., Bottom: 5666 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.NN
OHIO CREEK3224 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 8/8/2000                  Interval Top: 4327 ft.    Interval Bottom: 5424 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.313 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/15/2000
Treatment Summary:5120-5424 FRAC W/ 65420 GAL DELTA FRAC+217000#20/40 SAND+353000 SCF N2 4868-4974 FRACED W/54300 GAL DELTA FRAC+18400#20/40 SAND 4330 FRAC W/ 36000 GAL DELTA FRAC+98000# 20/40 SAND
Tubing Size:2.375 in.Tubing Setting Depth:5268 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/13/2001Test Method:
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 0
CALC_BBLS_H2O 2
CALC_BBLS_OIL 0
CALC_MCF_GAS 628
CASING_PRESS 840
MCF_GAS 628
TUBING_PRESS 650
Perforation Data:
Interval Top:4327 ft.# Of Holes:37
Interval Bottom:5424 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)2463
GOR
GOR DeterminationMCFE
Average BOE per Day1.166
Average MCFE per Day6.741

 Federal Financial Assurance  i

 Tribal Well  i No
