COGIS - WELL SCOUT CARD

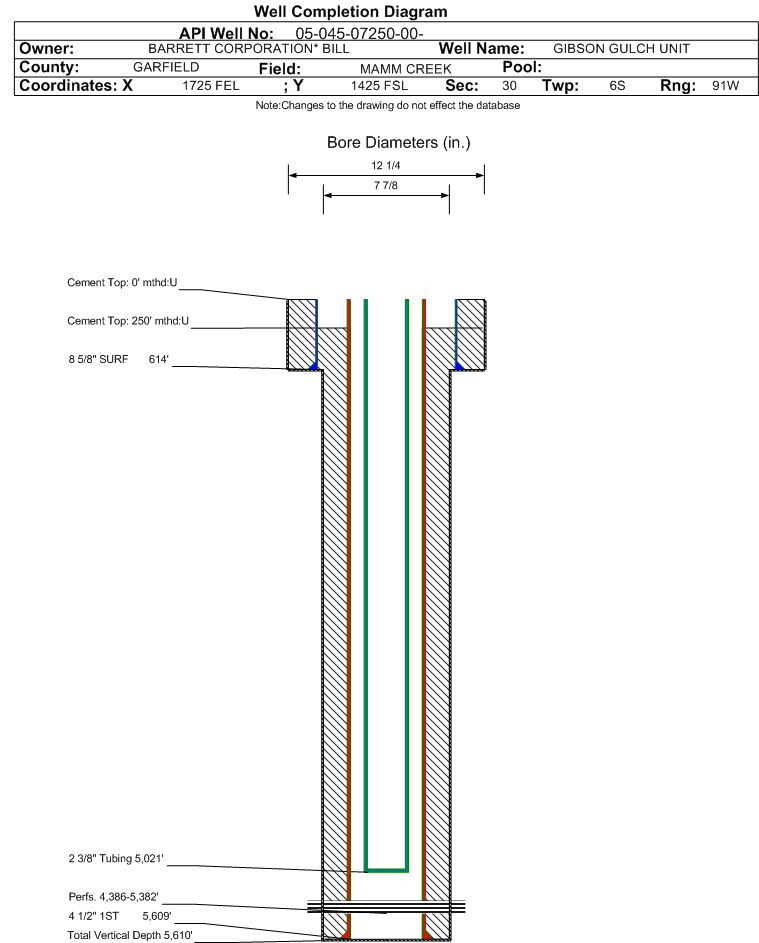

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07250		Well Classification: GW Status: PR - 9/1/2004
Well Name/No:GIBSON GULCH UNIT #10-30 D
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/1/2004
FacilityID:211490LocationID:324013
County:GARFIELD #045Location:NWSE 30 6S91W 6
Field:MAMM CREEK - #52500Elevation:5879 ft.
Basin:PICEANCE BASIN
Planned Location:1425FSL  1725 FELLat/Long: 39.495121 / -107.593461Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.495470 / -107.593197Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/1/2004             Measured TD: 5610 ft.    Vertical TD: 5610 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/1/2004
Wellbore Permit
Permit #:001136 Expiration Date:10/17/2001
Proposed Depth/Form:5400 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:1/26/2001
Spud Date:1/17/2001Spud Date Is:ACTUAL
Measured TD:5610 ft.Measured PB depth:5565 ft.
True Vertical TD:5610 ft.True Vertical PB depth:5565 ft.
Log Types:DIL / SDL / DSN
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 614 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 614 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 5609 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1050, Top: 250 ft., Bottom: 5609 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3339 ft.NN
OHIO CREEK3339 ft.3829 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 9/1/2004                  Interval Top: 4386 ft.    Interval Bottom: 5382 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.313 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:1/26/2001
Treatment Summary:4386-4902 FRAC W 421000 #20/40+3278 BBL 25KCL 5002-5382 FRAC W 193451 #20/40+1600 BBL 2%KCL
Tubing Size:2.375 in.Tubing Setting Depth:5021 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/8/2001Test Method:FLOW
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 15
BBLS_OIL 40
BTU_GAS 1170
CALC_BBLS_H2O 15
CALC_BBLS_OIL 40
CALC_GOR 17125
CALC_MCF_GAS 685
CASING_PRESS 850
GRAVITY_OIL 42
MCF_GAS 685
TUBING_PRESS 740
Perforation Data:
Interval Top:4386 ft.# Of Holes:20
Interval Bottom:5382 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)3
Total Gas Produced (MCF)3220
GOR1073333
GOR DeterminationMCFE
Average BOE per Day1.526
Average MCFE per Day8.874

 Federal Financial Assurance  i

 Tribal Well  i No
