COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07249		Well Classification: GW Status: PR - 9/1/2004
Well Name/No:GIBSON GULCH UNIT #9-30
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/1/2004
FacilityID:211489LocationID:324012
County:GARFIELD #045Location:NESE 30 6S91W 6
Field:MAMM CREEK - #52500Elevation:5909 ft.
Basin:PICEANCE BASIN
Planned Location:1790FSL  790 FELLat/Long: 39.496151 / -107.590171Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.496218 / -107.590043Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/1/2004             Measured TD: 5640 ft.    Vertical TD: 5640 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/1/2004
Wellbore Permit
Permit #:001135 Expiration Date:10/17/2001
Proposed Depth/Form:5400 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: U
Wellbore Completed
Completion Date:1/16/2001
Spud Date:1/6/2001Spud Date Is:ACTUAL
Measured TD:5640 ft.Measured PB depth:5786 ft.
True Vertical TD:5640 ft.True Vertical PB depth:5595 ft.
Log Types:DIL/SDL/DSN

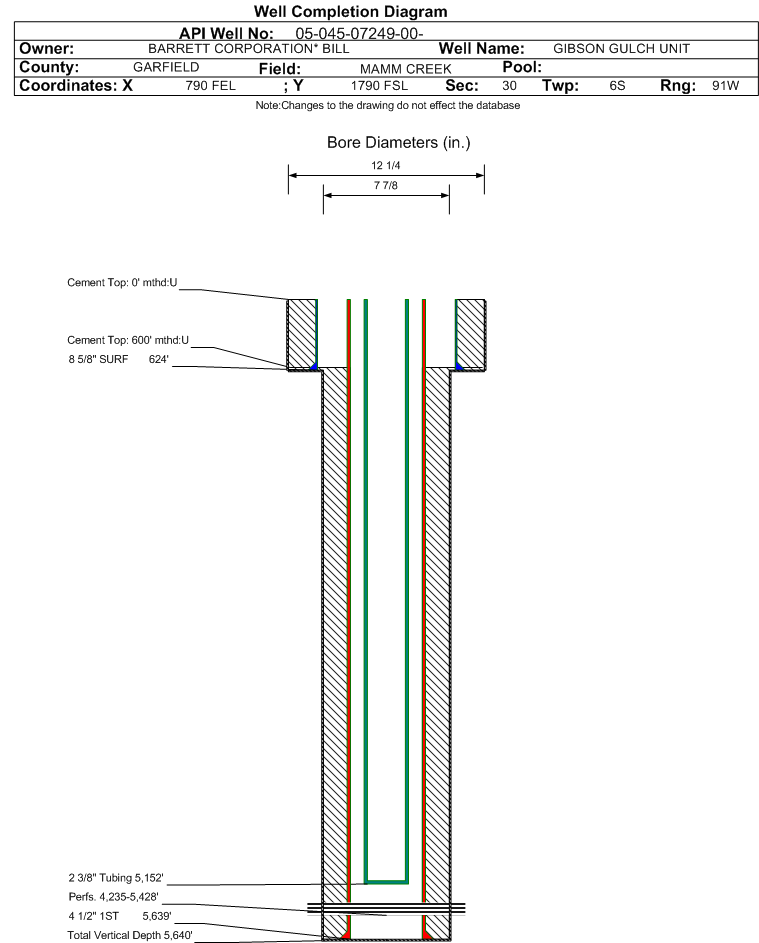

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 624 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 624 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5639 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1040, Top: 600 ft., Bottom: 5639 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3317 ft.NN
OHIO CREEK3317 ft.3870 ft.NN
WILLIAMS FORK3870 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 9/1/2004                  Interval Top: 4235 ft.    Interval Bottom: 5428 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.313 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:TRU TUBING
Open Hole Completion:No
Formation Treatment
Treatment Date:1/16/2001
Treatment Summary:4924-5428 FRACED WITH 2180 BBLS. 2% KCL WATER+375956# 20-40 SAND+374620 SCF N2. 4235-4665 FRACED WITH 2517 BBLS. 2% KCL WATER+370000# 20-40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5152 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/28/2001Test Method:44
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 62
BBLS_OIL 34
BTU_GAS 1180
CALC_BBLS_H2O 62
CALC_BBLS_OIL 34
CALC_GOR 34118
CALC_MCF_GAS 1160
CASING_PRESS 1180
GRAVITY_OIL 44
MCF_GAS 1160
TUBING_PRESS 890
Perforation Data:
Interval Top:4235 ft.# Of Holes:36
Interval Bottom:5428 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)40
Total Gas Produced (MCF)7867
GOR196675
GOR DeterminationMCFE
Average BOE per Day3.827
Average MCFE per Day22.172

 Federal Financial Assurance  i

 Tribal Well  i No
