COGIS - WELL SCOUT CARD

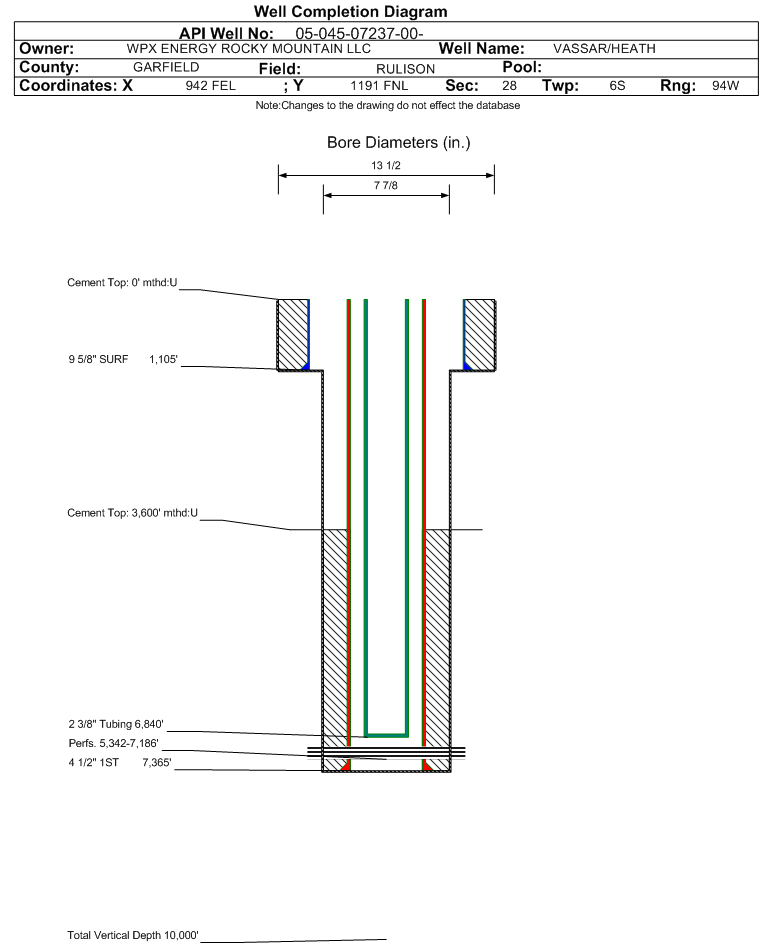

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07237		Well Classification: GW Status: PR - 3/15/2001
Well Name/No:VASSAR/HEATH #RMV 99-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/15/2001
FacilityID:211477LocationID:324008
County:GARFIELD #045Location:SENE 28 6S94W 6
Field:RULISON - #75400Elevation:5295 ft.
Basin:PICEANCE BASIN
Planned Location:1991FNL  942 FELLat/Long: 39.497916 / -107.886942Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.498041 / -107.887071Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/15/2001             Measured TD: 7374 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/15/2001
Wellbore Permit
Permit #:20000785 Expiration Date:7/26/2001
Proposed Depth/Form:7150 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-28 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:2/16/2001
Spud Date:12/19/2000Spud Date Is:ACTUAL
Measured TD:7374 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1105 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 0 ft., Bottom: 1105 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7365 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1070, Top: 3600 ft., Bottom: 7365 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1470 ft.NN
MESAVERDE3919 ft.NN
CAMEO COAL6670 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/15/2001                 Interval Top: 5342 ft.    Interval Bottom: 7186 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:2/16/2001Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/16/2001
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6840 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/25/2001Test Method:
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1842
CASING_PRESS 2019
MCF_GAS 1842
TUBING_PRESS 1865
Perforation Data:
Interval Top:5342 ft.# Of Holes:82
Interval Bottom:7186 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)14
Total Gas Produced (MCF)11788
GOR842000
GOR DeterminationMCFE
Average BOE per Day5.617
Average MCFE per Day32.575

 Federal Financial Assurance  i

 Tribal Well  i No
