COGIS - WELL SCOUT CARD

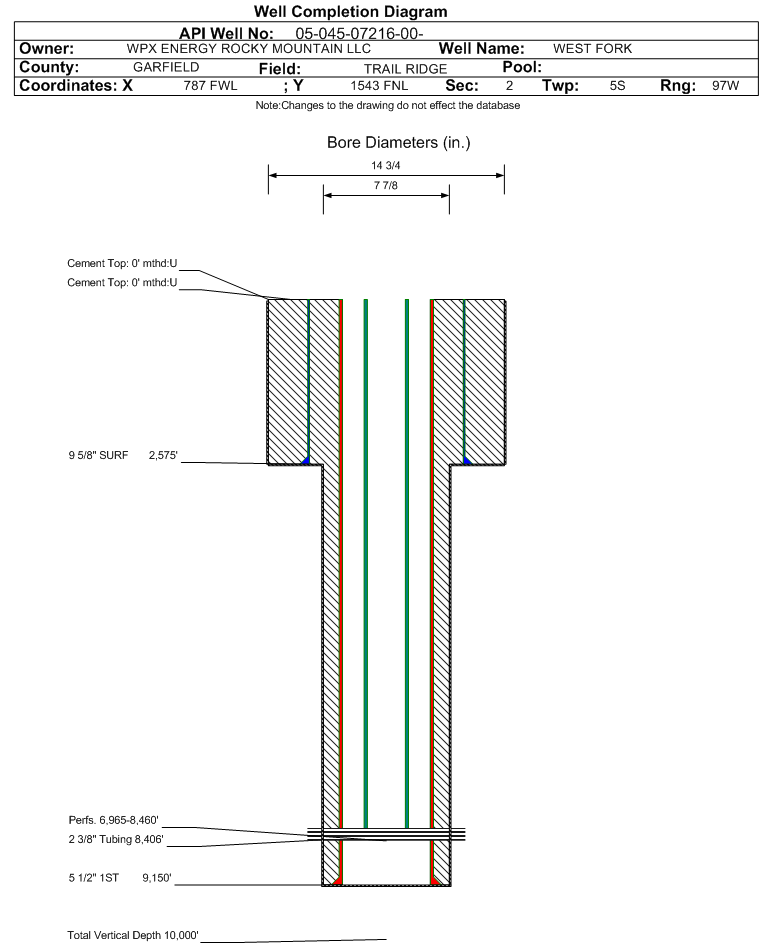

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07216		Well Classification: GW Status: PR - 5/1/2012
Well Name/No:WEST FORK #1-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2012
FacilityID:211456LocationID:324000
County:GARFIELD #045Location:SWNW 2 5S97W 6
Field:TRAIL RIDGE - #83825Elevation:7999 ft.
Basin:PICEANCE BASIN
Planned Location:1543FNL  787 FWLLat/Long: 39.645465 / -108.252522Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.645519 / -108.252474Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/1/2012             Measured TD: 9150 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/1/2012
Wellbore Permit
Permit #:20031130 Expiration Date:6/27/2003
Proposed Depth/Form:9150 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: 0 , Unit Acreage: 0, Drill Unit:
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: , Depth: 2575 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom: 2528 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 9150 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: , Top: 4500 ft., Bottom: 9150 ft.
Wellbore Completed
Completion Date:12/18/1998
Spud Date:7/30/2003Spud Date Is:PLANNED
Measured TD:9150 ft.Measured PB depth:9040 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2575 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 9150 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH4008 ft.
OHIO CREEK5737 ft.
MESAVERDE6405 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 8/1/2012                  Interval Top: 6965 ft.    Interval Bottom: 8460 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:1/12/1999Choke Size:0.310 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:12/18/1998
Treatment Summary:SEE SCANNED DOC #01257488
Tubing Size:2.375 in.Tubing Setting Depth:8406 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/12/1999Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:FLARED
Test TypeMeasure
CASING_PRESS 1270
MCF_GAS 460
TUBING_PRESS 1160
Perforation Data:
Interval Top:6965 ft.# Of Holes:78
Interval Bottom:8460 ft.Hole Size:0.22 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)5
Total Gas Produced (MCF)4551
GOR910200
GOR DeterminationMCFE
Average BOE per Day2.165
Average MCFE per Day12.553

 Federal Financial Assurance  i

 Tribal Well  i No
