COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07191		Well Classification: CBM Status: PR - 1/1/2018
Well Name/No:FEDERAL #GM 44-3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13372
Facility Status:PRStatus Date1/1/2018
FacilityID:211431LocationID:334876
County:GARFIELD #045Location:SESE 3 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5549 ft.
Basin:PICEANCE BASIN
Planned Location:593FSL  633 FELLat/Long: 39.460429 / -108.089076Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.460502 / -108.089003Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

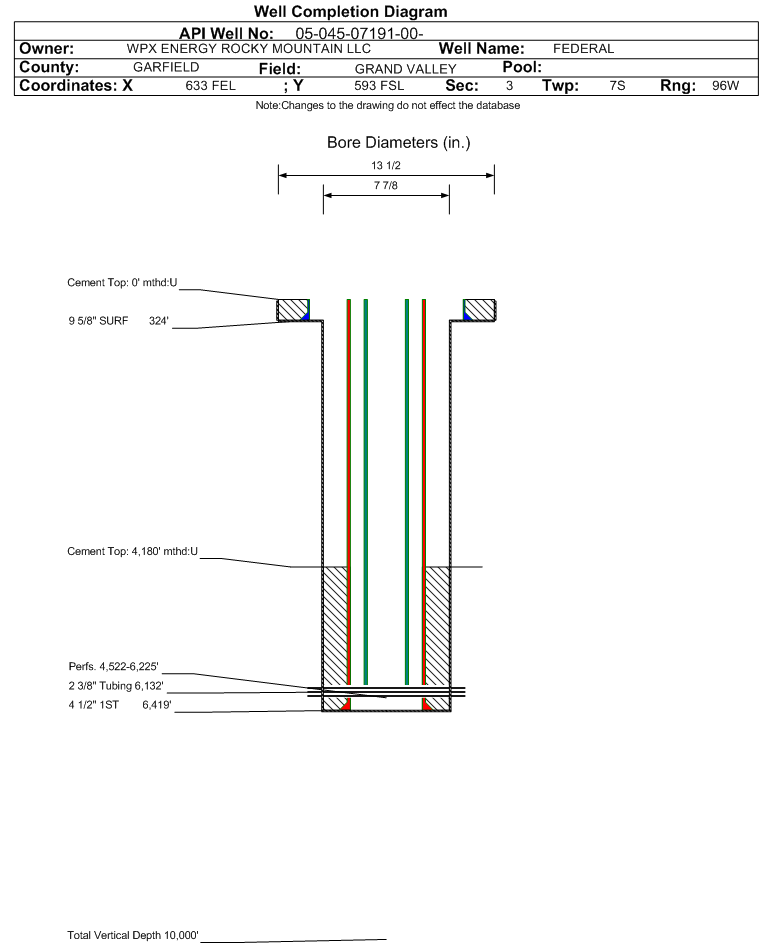

Wellbore #00             Wellbore Classification: CBM             Status: PR - 1/1/2018             Measured TD: 6424 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 1/1/2018
Wellbore Permit
Permit #:970439 Expiration Date:6/15/1998
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:COC24603
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 510 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:12/23/1997
Measured TD:6424 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 324 ft., Weight: 36 , Citings Type: HISTORICAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 324 ft., Determination Method: VIS
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6419 ft., Weight: 11.6 , Citings Type: HISTORICAL
Cement:Sacks: 795, Top: 4180 ft., Bottom: 6419 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
MESAVERDE3321 ft.
CAMEO COAL5808 ft.
ROLLINS6321 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 1/1/2018                  Interval Top: 4522 ft.    Interval Bottom: 6225 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/23/1997Choke Size:1,864.000 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/28/1997Test Method:FLOWING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
MCF_GAS 1437
Perforation Data:
Interval Top:4522 ft.# Of Holes:76
Interval Bottom:6225 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)9441
GOR786750
GOR DeterminationMCFE
Average BOE per Day4.489
Average MCFE per Day26.068

 Federal Financial Assurance  i Y

 Tribal Well  i No
