COGIS - WELL SCOUT CARD

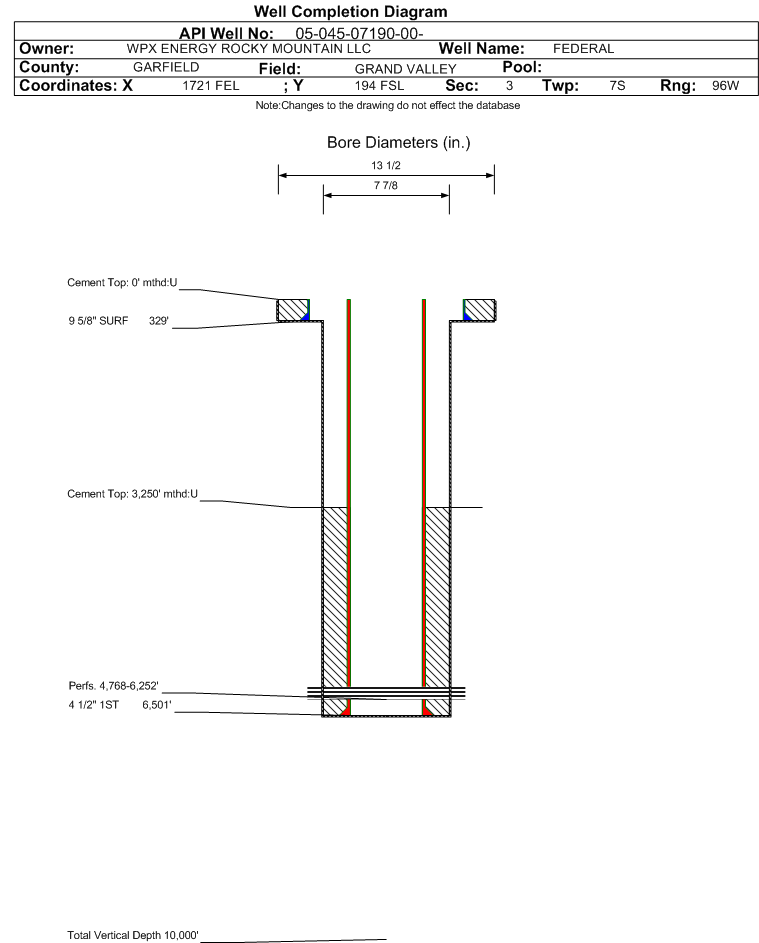

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07190		Well Classification: CBM Status: PR - 12/21/1997
Well Name/No:FEDERAL #GM 34-3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13373
Facility Status:PRStatus Date12/21/1997
FacilityID:211430LocationID:334846
County:GARFIELD #045Location:SWSE 3 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5742 ft.
Basin:PICEANCE BASIN
Planned Location:194FSL  1721 FELLat/Long: 39.459299 / -108.093066Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.459342 / -108.093139Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 12/21/1997             Measured TD: 6507 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 12/21/1997
Wellbore Permit
Permit #:970438 Expiration Date:6/15/1998
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:COC24603
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:12/17/1997
Measured TD:6507 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 329 ft., Weight: 36 , Citings Type: HISTORICAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 329 ft., Determination Method: VIS
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6501 ft., Weight: 11.6 , Citings Type: HISTORICAL
Cement:Sacks: 1300, Top: 3250 ft., Bottom: 6501 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION2236 ft.
MESAVERDE3496 ft.
CAMEO COAL5852 ft.
ROLLINS6398 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/21/1997                Interval Top: 4768 ft.    Interval Bottom: 6252 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/17/1997Choke Size:1,464.000 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/21/1997Test Method:FLOWING
Hours Tested:Gas Type:COAL GAS
Gas Disposal:SOLD
Test TypeMeasure
MCF_GAS 1349
Perforation Data:
Interval Top:4768 ft.# Of Holes:48
Interval Bottom:6252 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)10
Total Gas Produced (MCF)5850
GOR585000
GOR DeterminationMCFE
Average BOE per Day2.789
Average MCFE per Day16.193

 Federal Financial Assurance  i Y

 Tribal Well  i No
