COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07189		Well Classification: GW Status: PR - 12/14/1997
Well Name/No:UNOCAL #GR 1-33R
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13346
Facility Status:PRStatus Date12/14/1997
FacilityID:211429LocationID:323990
County:GARFIELD #045Location:SWNE 33 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5408 ft.
Basin:PICEANCE BASIN
Planned Location:2207FNL  2406 FELLat/Long: 39.481658 / -108.112526Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.481883 / -108.112458Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/14/1997             Measured TD: 6493 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/14/1997
Wellbore Permit
Permit #:970437 Expiration Date:6/15/1998
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 510-1 , Unit Acreage: 40, Drill Unit: SWNE
Wellbore Completed
Completion Date:12/12/1997
Measured TD:6493 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

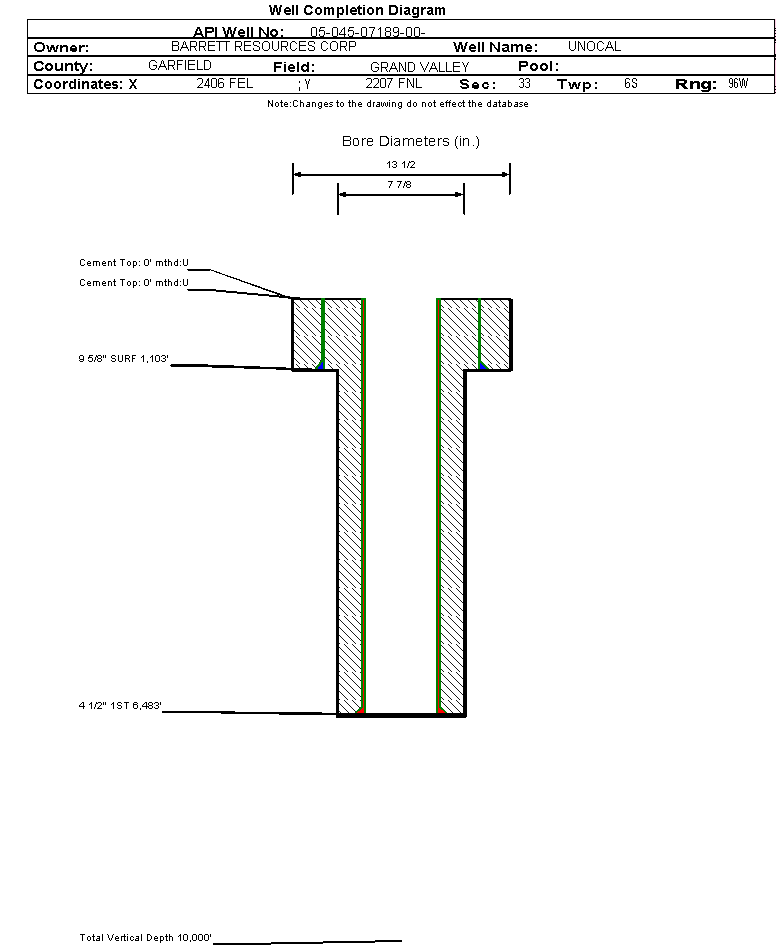

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1103 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 500, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6483 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
MESAVERDE3507 ft.
CAMEO COAL5882 ft.
ROLLINS6362 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/14/1997

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/12/1997Choke Size:1,464.000 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)5903
GOR536636
GOR DeterminationMCFE
Average BOE per Day2.820
Average MCFE per Day16.361

 Federal Financial Assurance  i

 Tribal Well  i No
