COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07163		Well Classification: GW Status: PR - 7/27/1997
Well Name/No:GIBSON GULCH UNIT #3-31
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13285
Facility Status:PRStatus Date7/27/1997
FacilityID:211403LocationID:323982
County:GARFIELD #045Location:NENW 31 6S91W 6
Field:MAMM CREEK - #52500Elevation:5930 ft.
Basin:PICEANCE BASIN
Planned Location:581FNL  2653 FWLLat/Long: 39.489601 / -107.596601Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.489777 / -107.596517Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/27/1997             Measured TD: 5412 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/27/1997
Wellbore Permit
Permit #:970193 Expiration Date:3/12/1998
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: 0 , Unit Acreage: 0, Drill Unit: U

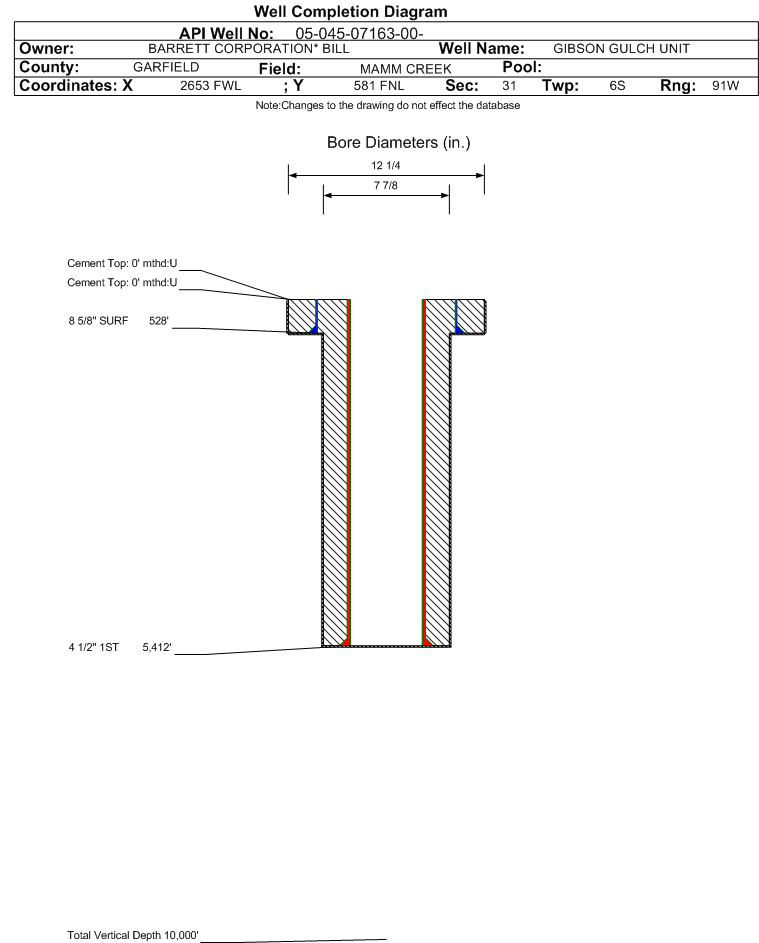

Wellbore Completed
Completion Date:7/23/1997
Measured TD:5412 ft.Measured PB depth:5278 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 528 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 345, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5412 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH2684 ft.
OHIO CREEK3207 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 7/27/1997

 Completed Information for Formation WILLIAMS FORK
1st Production Date:7/12/1997Choke Size:2,664.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)19
Total Gas Produced (MCF)12620
GOR664210
GOR DeterminationMCFE
Average BOE per Day6.015
Average MCFE per Day34.888

 Federal Financial Assurance  i

 Tribal Well  i No
