COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07161		Well Classification: GW Status: PR - 8/15/1997
Well Name/No:GIBSON GULCH UNIT #11-30
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13353
Facility Status:PRStatus Date8/15/1997
FacilityID:211401LocationID:335294
County:GARFIELD #045Location:NESW 30 6S91W 6
Field:MAMM CREEK - #52500Elevation:5846 ft.
Basin:PICEANCE BASIN
Planned Location:2076FSL  2443 FWLLat/Long: 39.496881 / -107.597481Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.496998 / -107.597263Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/15/1997             Measured TD: 5465 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/15/1997
Wellbore Permit
Permit #:970191 Expiration Date:3/12/1998
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 0 , Unit Acreage: 0, Drill Unit: U
Wellbore Completed
Completion Date:8/11/1997
Spud Date:7/13/1997Spud Date Is:ACTUAL
Measured TD:5465 ft.Measured PB depth:5423 ft.
True Vertical TD:0 ft.True Vertical PB depth:

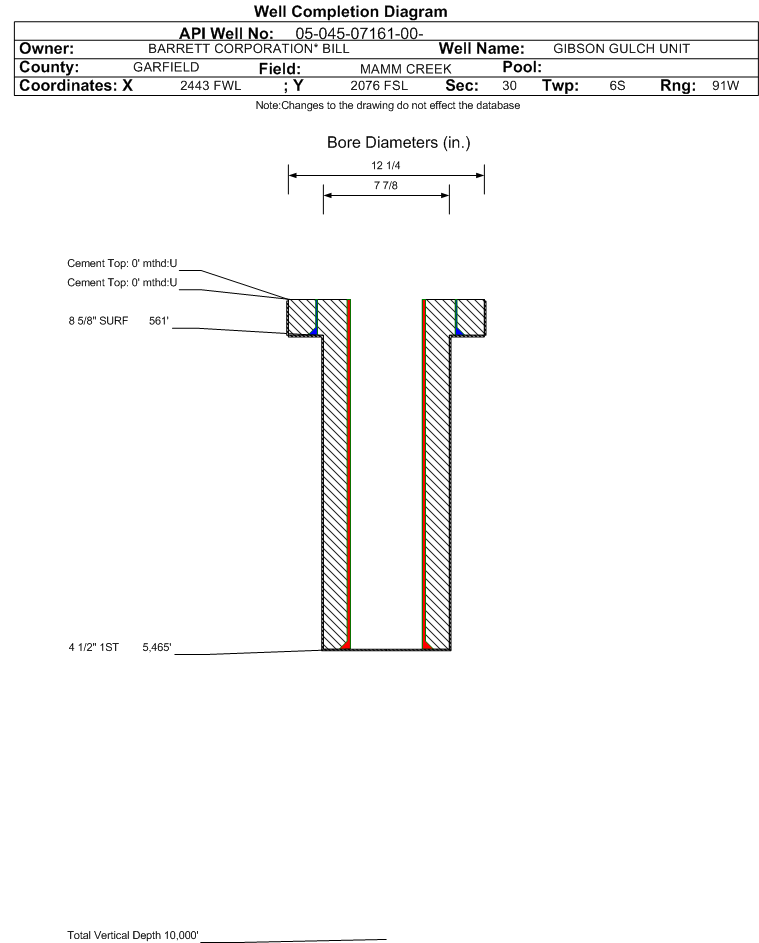

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 561 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 345, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5465 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH2640 ft.
OHIO CREEK3278 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 8/15/1997

 Completed Information for Formation WILLIAMS FORK
1st Production Date:8/4/1997Choke Size:2,264.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)4
Total Gas Produced (MCF)616
GOR154000
GOR DeterminationMCFE
Average BOE per Day0.302
Average MCFE per Day1.759

 Federal Financial Assurance  i

 Tribal Well  i No
