COGIS - WELL SCOUT CARD

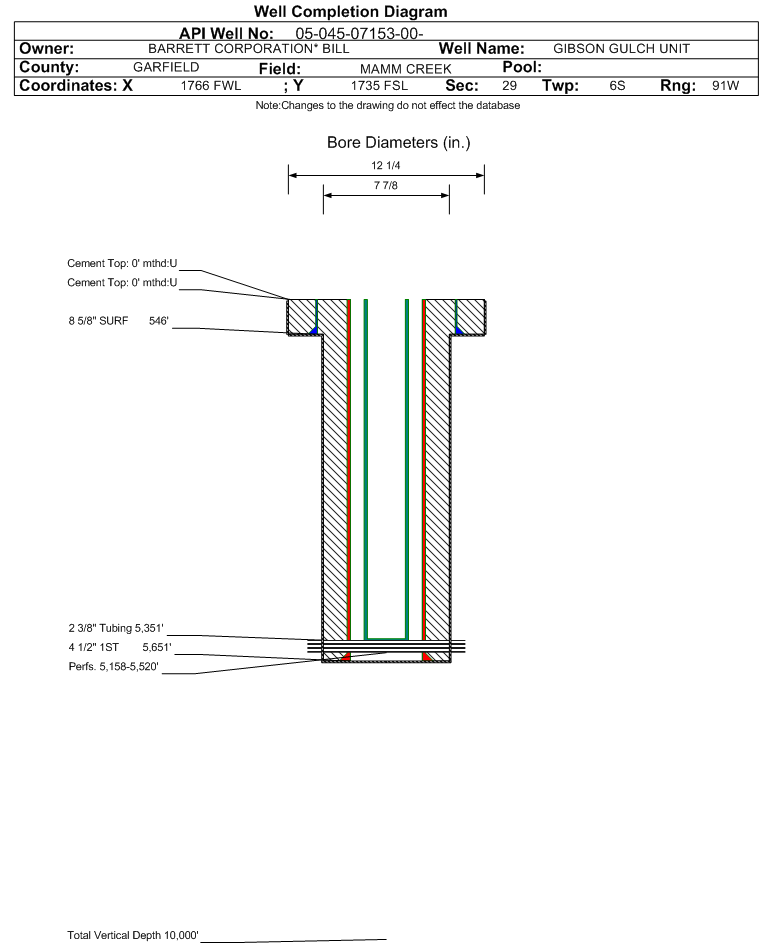

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07153		Well Classification: GW Status: PR - 7/16/2009
Well Name/No:GIBSON GULCH UNIT #11-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12584
Facility Status:PRStatus Date7/16/2009
FacilityID:211393LocationID:335224
County:GARFIELD #045Location:NESW 29 6S91W 6
Field:MAMM CREEK - #52500Elevation:6008 ft.
Basin:PICEANCE BASIN
Planned Location:1735FSL  1766 FWLLat/Long: 39.496121 / -107.581110Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.496269 / -107.580919Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/16/2009             Measured TD: 5650 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/16/2009
Wellbore Permit
Permit #:970128 Expiration Date:2/18/1998
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: 0 , Unit Acreage: 0, Drill Unit: U
Wellbore Completed
Completion Date:6/29/1997
Spud Date:5/23/1997Spud Date Is:ACTUAL
Measured TD:5650 ft.Measured PB depth:5621 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 546 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 393, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5651 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
MESAVERDE0 ft.
WILLIAMS FORK0 ft.
WASATCH2781 ft.
OHIO CREEK3374 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 7/16/2009                 Interval Top: 5158 ft.    Interval Bottom: 5520 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:1.000 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/29/1997
Treatment Summary:4317-5037':SQUEEZED W/394 SXS CLASS "G" CEMENT.EXISTING PERFS WET GIVING UP SAND 0 GAS. ABANDONED 2/25/05 SQUEEZED W/364 SACKS.5158-5520':10/15# LINEAR GEL FRAC W/152,000 LBS 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5351 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/2/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 106
MCF_GAS 106
TUBING_PRESS 100
Perforation Data:
Interval Top:5158 ft.# Of Holes:44
Interval Bottom:5520 ft.Hole Size:0.34 in.

Formation MVRD                     Formation Classification:  GW                     Status:  AB - 2/25/2005

 Completed Information for Formation MESAVERDE
1st Production Date:6/20/1997Choke Size:20,264.000 in.
Formation Name:MESAVERDECommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation MVRD.
No Perforation Data was found for formation MVRD.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)1
Total Gas Produced (MCF)600
GOR600000
GOR DeterminationMCFE
Average BOE per Day0.285
Average MCFE per Day1.662

 Federal Financial Assurance  i

 Tribal Well  i No
