COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07143		Well Classification: GW Status: PR - 1/1/2022
Well Name/No:GIBSON GULCH UNIT #13-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13347
Facility Status:PRStatus Date1/1/2022
FacilityID:211383LocationID:323972
County:GARFIELD #045Location:SWSW 29 6S91W 6
Field:MAMM CREEK - #52500Elevation:6002 ft.
Basin:PICEANCE BASIN
Planned Location:395FSL  607 FWLLat/Long: 39.492371 / -107.585151Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.492362 / -107.585138Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/1/2022             Measured TD: 5476 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/1/2022
Wellbore Permit
Permit #:970014 Expiration Date:1/8/1998
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MVRD , Formation: MESAVERDE , Order: 0 , Unit Acreage: 0, Drill Unit: U
Wellbore Completed
Completion Date:N/A
Spud Date:3/21/1997Spud Date Is:ACTUAL
Measured TD:5476 ft.Measured PB depth:5428 ft.
True Vertical TD:0 ft.True Vertical PB depth:

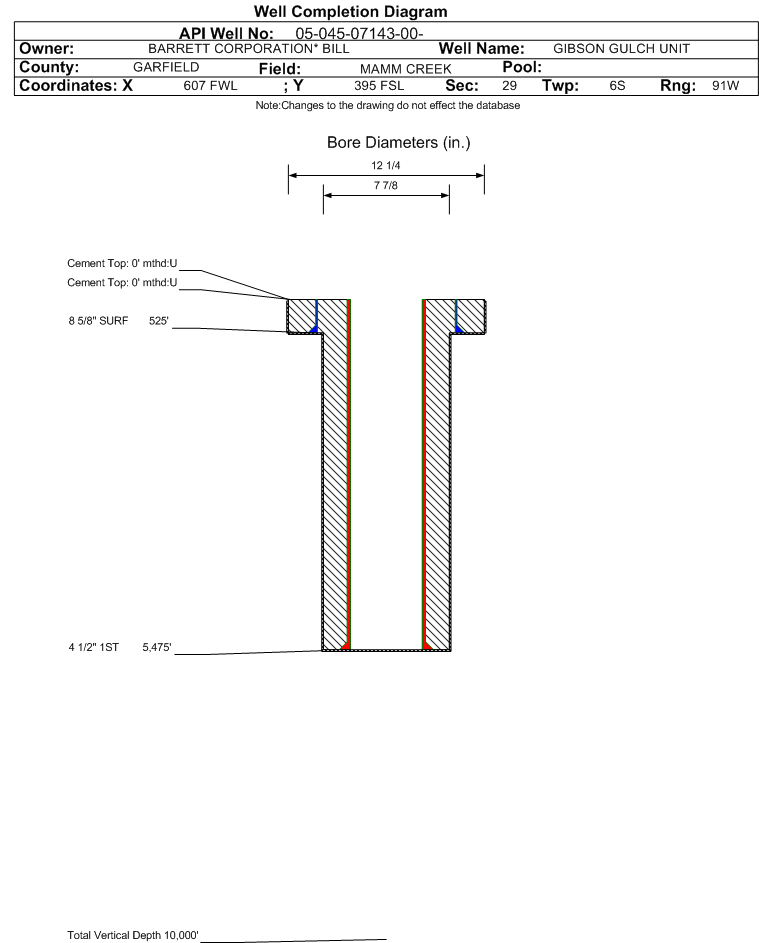

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 525 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 345, Top: 0 ft., Bottom: 525 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5475 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 650, Top: 2962 ft., Bottom: 5475 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: 4.5 in., Top: , Depth: 755 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 675 ft., Bottom: 755 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH2690 ft.
OHIO CREEK3285 ft.
CASTLEGATE5465 ft.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 1/1/2022

 Completed Information for Formation WILLIAMS FORK
1st Production Date:5/10/1997Choke Size:2,064.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)470
GOR
GOR DeterminationMCFE
Average BOE per Day0.221
Average MCFE per Day1.282

 Federal Financial Assurance  i

 Tribal Well  i No
