COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07116		Well Classification: GW Status: PR - 5/27/2005
Well Name/No:UNOCAL #GM 11-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13387
Facility Status:PRStatus Date5/27/2005
FacilityID:211356LocationID:334771
County:GARFIELD #045Location:NWNW 2 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5276 ft.
Basin:PICEANCE BASIN
Planned Location:455FNL  644 FWLLat/Long: 39.471999 / -108.083076Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.472093 / -108.082923Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/27/2005             Measured TD: 6385 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/27/2005
Wellbore Permit
Permit #:960805 Expiration Date:11/11/1997
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 0 , Unit Acreage: 160, Drill Unit: NW4
Wellbore Completed
Completion Date:6/24/1997
Measured TD:6385 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

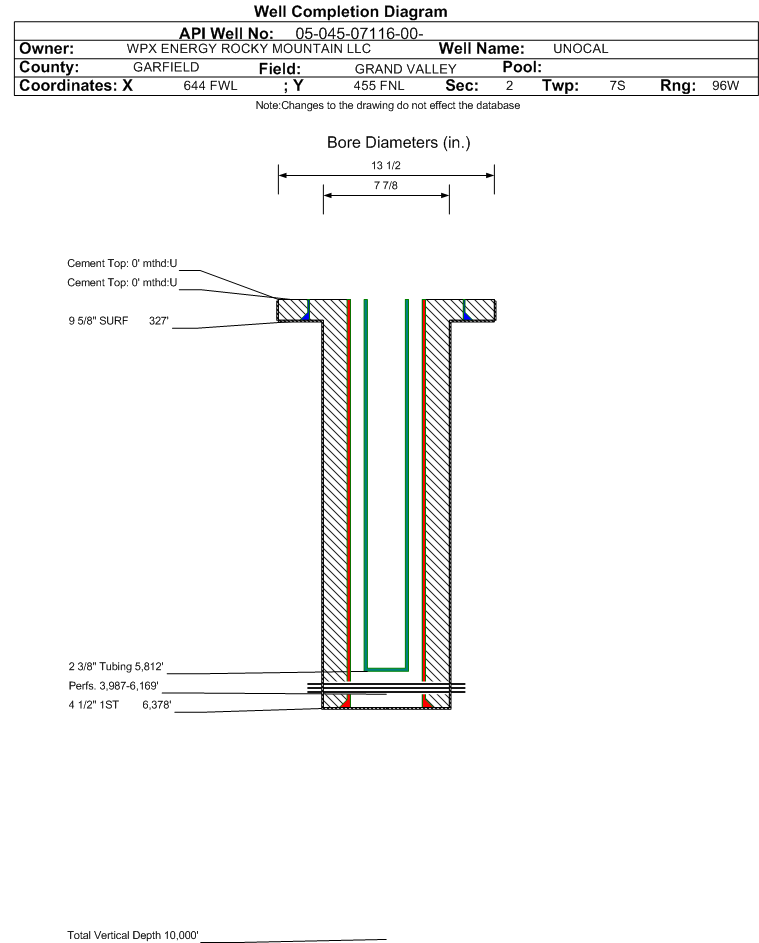

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 327 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6378 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FORT UNION1858 ft.
MESAVERDE3290 ft.
CAMEO COAL5844 ft.
ROLLINS6284 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 5/27/2005                 Interval Top: 3987 ft.    Interval Bottom: 6169 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.750 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/24/1997
Treatment Summary:4500 GALS 7 1/2% HCL,2153200# 20/40,9164 BBLS GEL,2154 BBLS SLICKWATER,83.8 TONS CO2 ,
Tubing Size:2.375 in.Tubing Setting Depth:5812 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/27/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 112
CASING_PRESS 469
MCF_GAS 112
TUBING_PRESS 211
Perforation Data:
Interval Top:3987 ft.# Of Holes:278
Interval Bottom:6169 ft.Hole Size:

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 6/26/1997

 Completed Information for Formation WILLIAMS FORK
1st Production Date:6/24/1997Choke Size:0.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)3696
GOR
GOR DeterminationMCFE
Average BOE per Day1.748
Average MCFE per Day10.125

 Federal Financial Assurance  i

 Tribal Well  i No
