COGIS - WELL SCOUT CARD

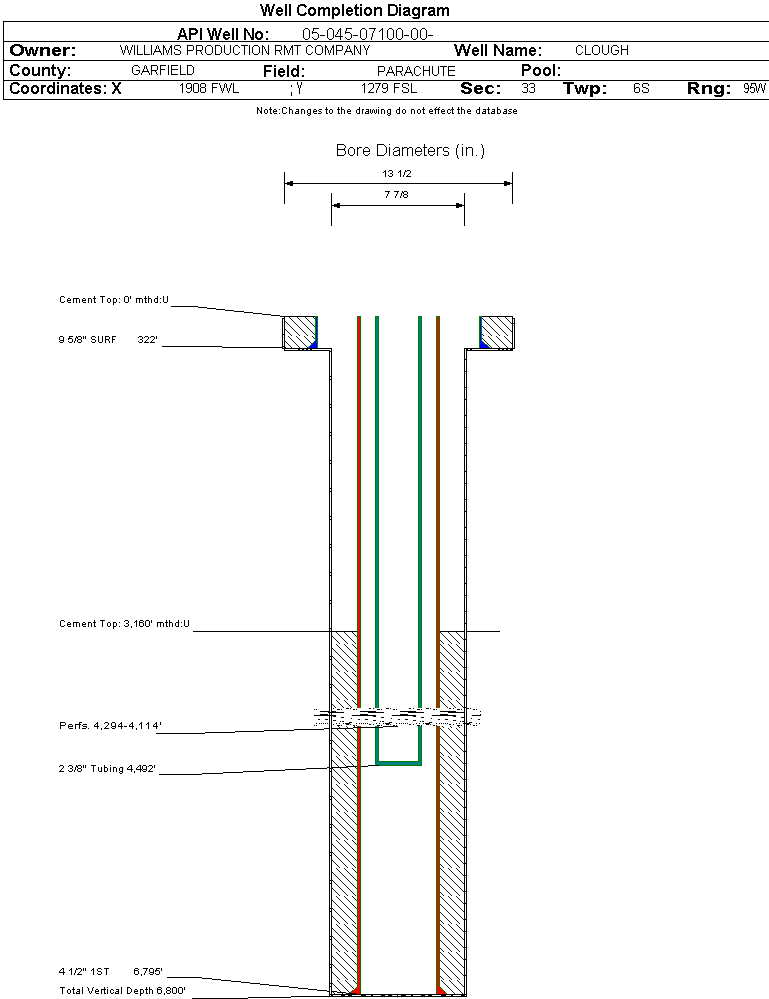

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07100		Well Classification: GW Status: PR - 2/6/2005
Well Name/No:CLOUGH #PA 24-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:13261
Facility Status:PRStatus Date2/6/2005
FacilityID:211340LocationID:334877
County:GARFIELD #045Location:SESW 33 6S95W 6
Field:PARACHUTE - #67350Elevation:5158 ft.
Basin:PICEANCE BASIN
Planned Location:1279FSL  1908 FWLLat/Long: 39.477289 / -108.005643Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.477177 / -108.005612Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/6/2005             Measured TD: 6800 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/6/2005
Wellbore Permit
Permit #:960592 Expiration Date:8/27/1997
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-16 , Unit Acreage: 160, Drill Unit: SW4
Wellbore Completed
Completion Date:3/21/1997
Spud Date:1/23/1997Spud Date Is:ACTUAL
Measured TD:6800 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL IND SPECTRAL DEN DUAL SPACED NEU.,CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 322 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: , Bottom: 322 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6795 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 985, Top: 3160 ft., Bottom: 6795 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1246 ft.NN
FORT UNION1637 ft.NN
MESAVERDE3340 ft.NN
CAMEO6143 ft.NN
CAMEO COAL6143 ft.
ROLLINS6688 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/6/2005                  Interval Top: 4114 ft.    Interval Bottom: 4294 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/21/1997
Treatment Summary:1000 GAL 7 1/2% HCL; 174522# 20/40 SAND; 3463 BBL SICKWATER, 101 TONS CO2 PERFS 5404 - 6596' ARE BELOW PLUG AT 4760'
Tubing Size:2.375 in.Tubing Setting Depth:4492 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/6/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 641
CASING_PRESS 783
MCF_GAS 641
TUBING_PRESS 669
Perforation Data:
Interval Top:4114 ft.# Of Holes:33
Interval Bottom:4294 ft.Hole Size:0.42 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 3/24/1997

 Completed Information for Formation WILLIAMS FORK
1st Production Date:3/21/1997Choke Size:1,664.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)26
Total Gas Produced (MCF)19467
GOR748730
GOR DeterminationMCFE
Average BOE per Day9.279
Average MCFE per Day53.798

 Federal Financial Assurance  i

 Tribal Well  i No
