COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07097		Well Classification: GW Status: PR - 3/9/1997
Well Name/No:EXXON #PA 43-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:12646
Facility Status:PRStatus Date3/9/1997
FacilityID:211337LocationID:335296
County:GARFIELD #045Location:NESE 32 6S95W 6
Field:PARACHUTE - #67350Elevation:5185 ft.
Basin:PICEANCE BASIN
Planned Location:2180FSL  400 FELLat/Long: 39.479769 / -108.013873Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.479805 / -108.013831Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/6/1997             Measured TD: 6770 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/6/1997
Wellbore Permit
Permit #:960589 Expiration Date:8/27/1997
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-16 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:3/6/1997
Measured TD:6770 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

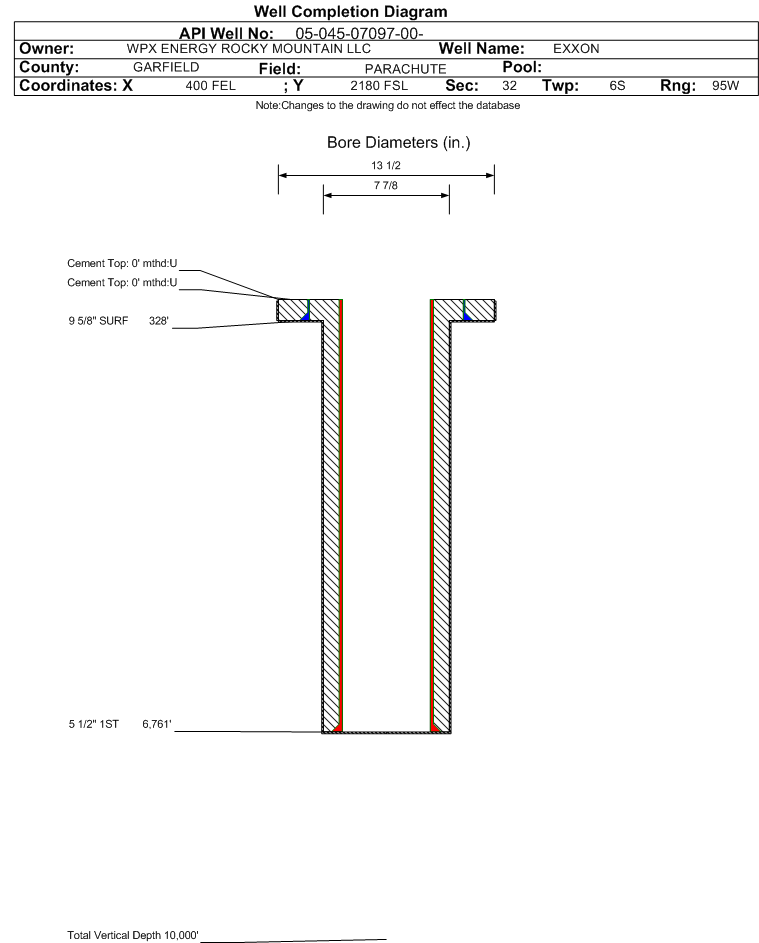

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 328 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 0 ft., Bottom: 328 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6761 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: , Top: 3892 ft., Bottom: 6761 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
MESAVERDE3393 ft.
CAMEO COAL6102 ft.
ROLLINS6690 ft.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/6/1997

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 3/9/1997

 Completed Information for Formation WILLIAMS FORK
1st Production Date:3/6/1997Choke Size:1,464.000 in.
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
No Perforation Data was found for formation WMFK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)10687
GOR890583
GOR DeterminationMCFE
Average BOE per Day5.088
Average MCFE per Day29.480

 Federal Financial Assurance  i

 Tribal Well  i No
